Description

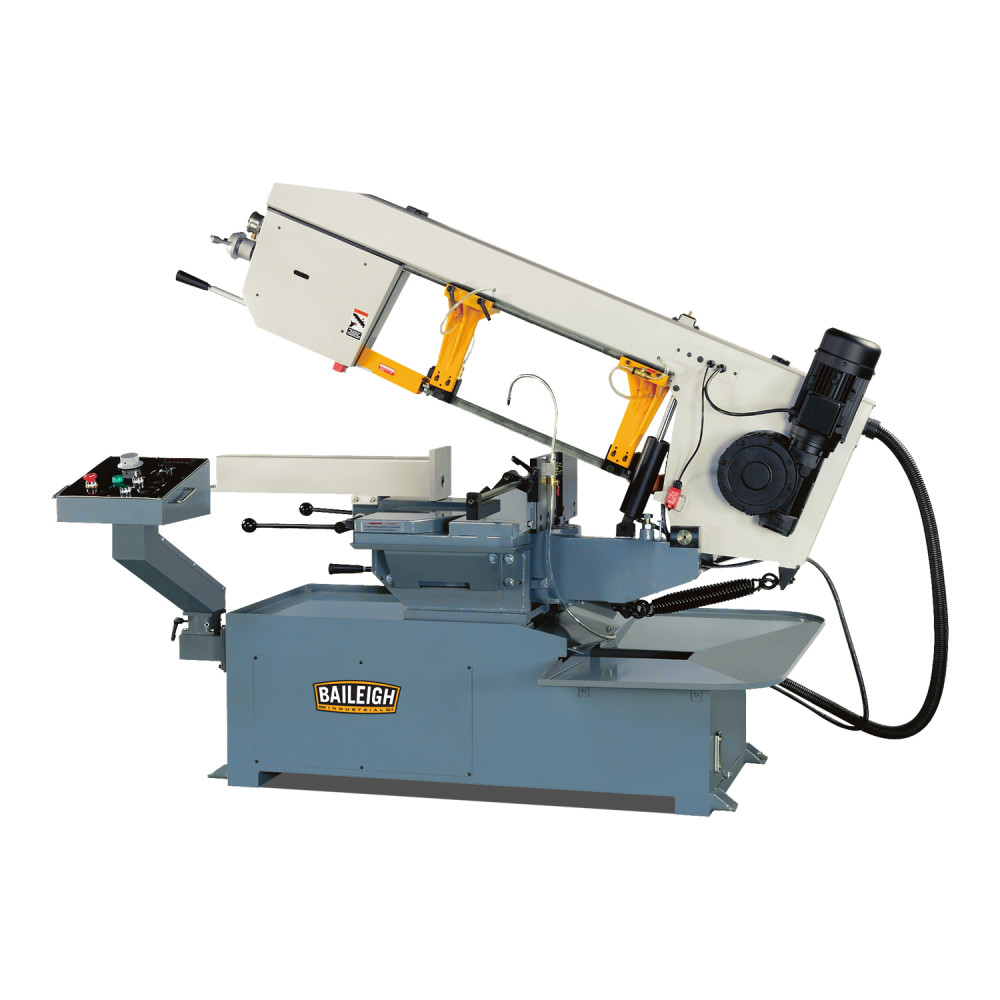

Baileigh BS-20M-DM Band Saw Manual Dual Mitering 220V 3 Phase
The manual BS-20M-DM dual miter band saw offers hydraulic descent, a roller infeed, and a material stop for efficiency. With its steel frame, the saw will last for many years.
Features
Inverter drive lets you adjust blade speed – 69-306 Fpm, Accepts large 1.25 In. blade (included) for speed and accuracy, The larger the blade, the straighter the cut

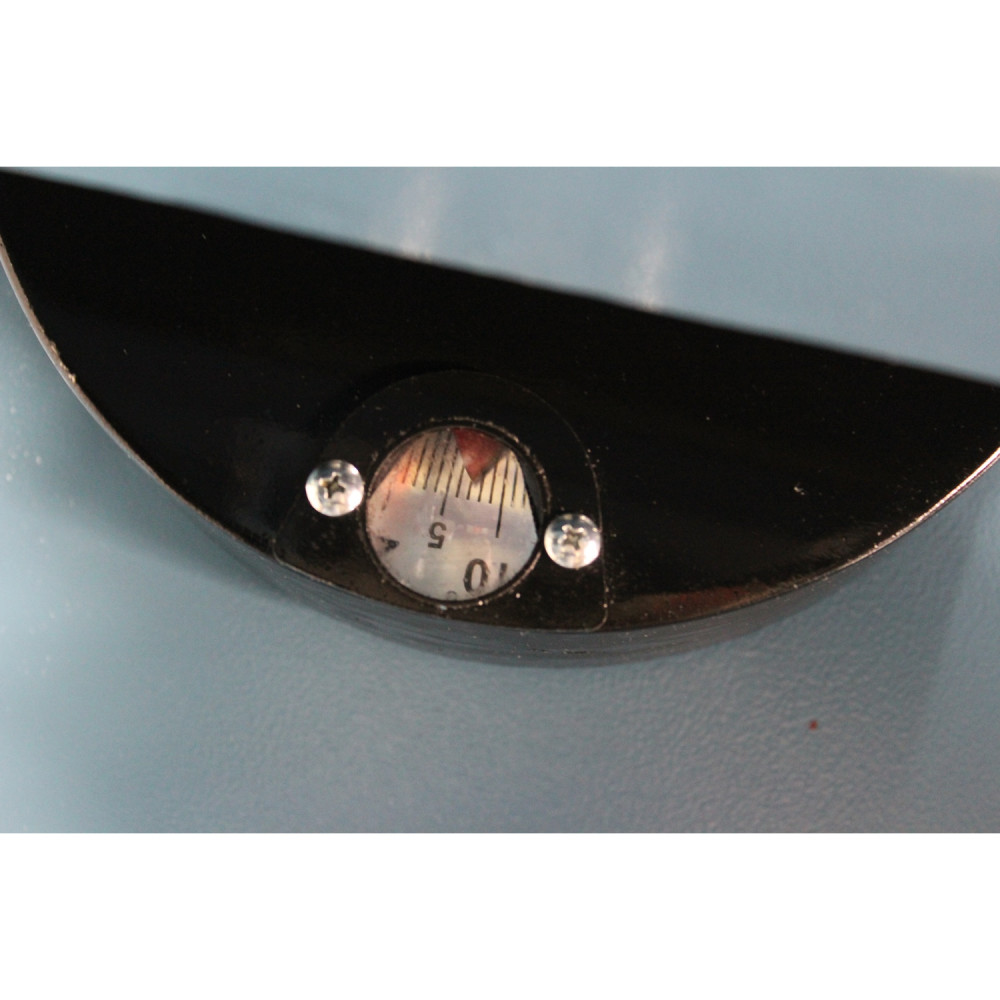

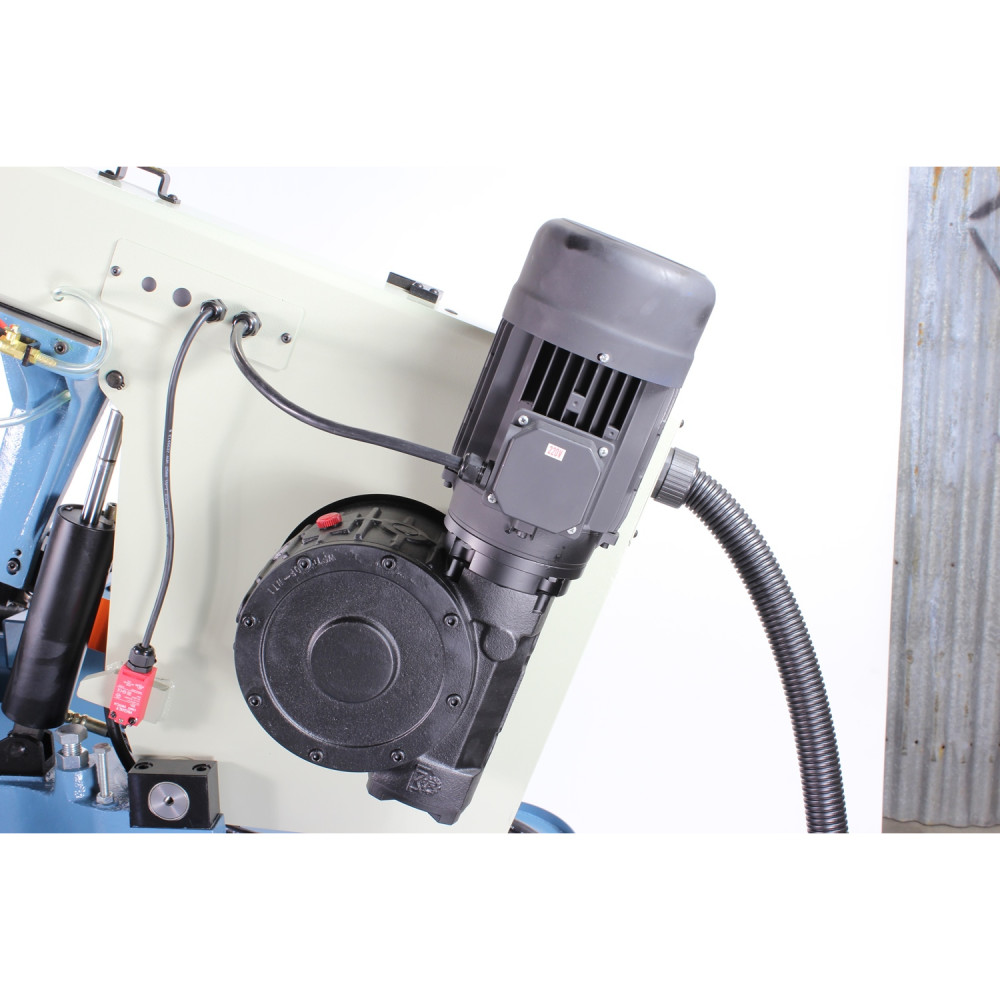

Industrial reduction gearbox transmission makes the saw more reliable than one with a belt and pulley system, Miters 45 Deg left and 60 Deg right, Just push or pull the head to the angle you need

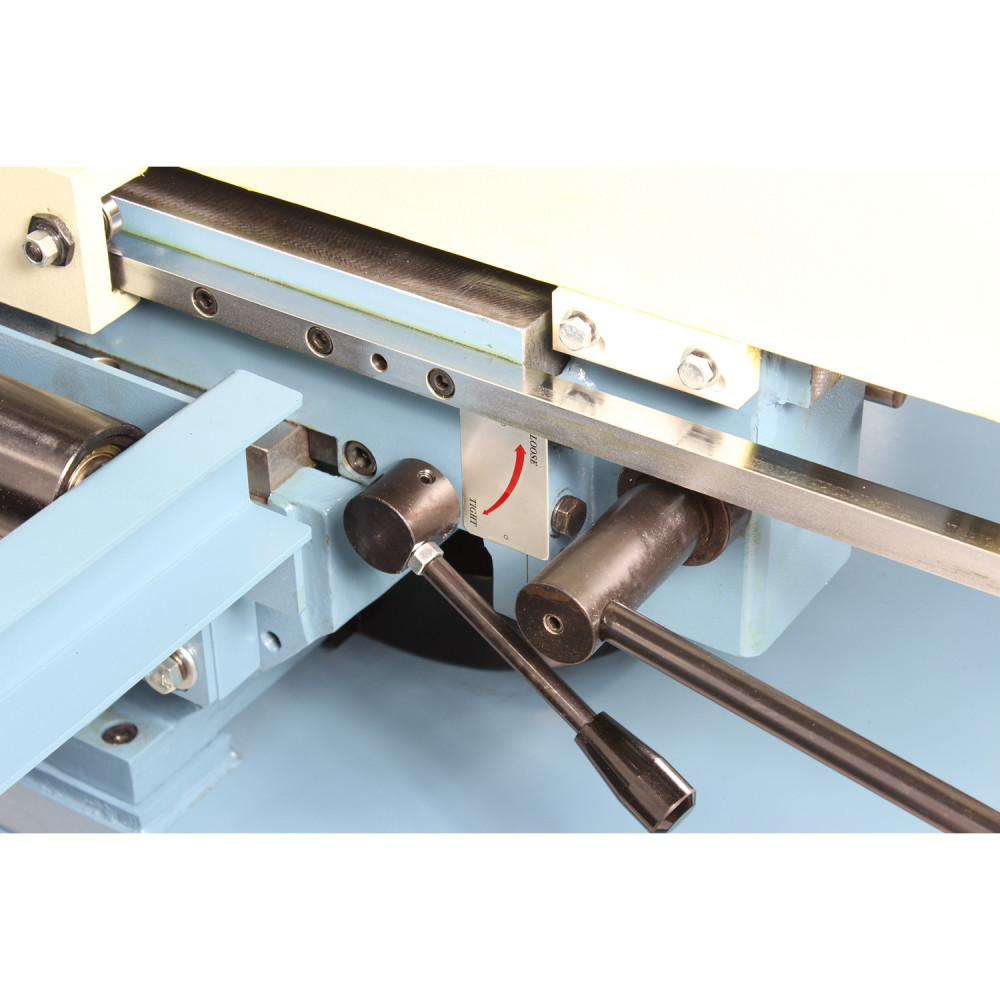

Rigid cast iron bow adds to the structural strength of the machine and reduces vibrations, Quick-lock vise has serrated jaws that grip onto round material, preventing it from spinning and ruining a blade

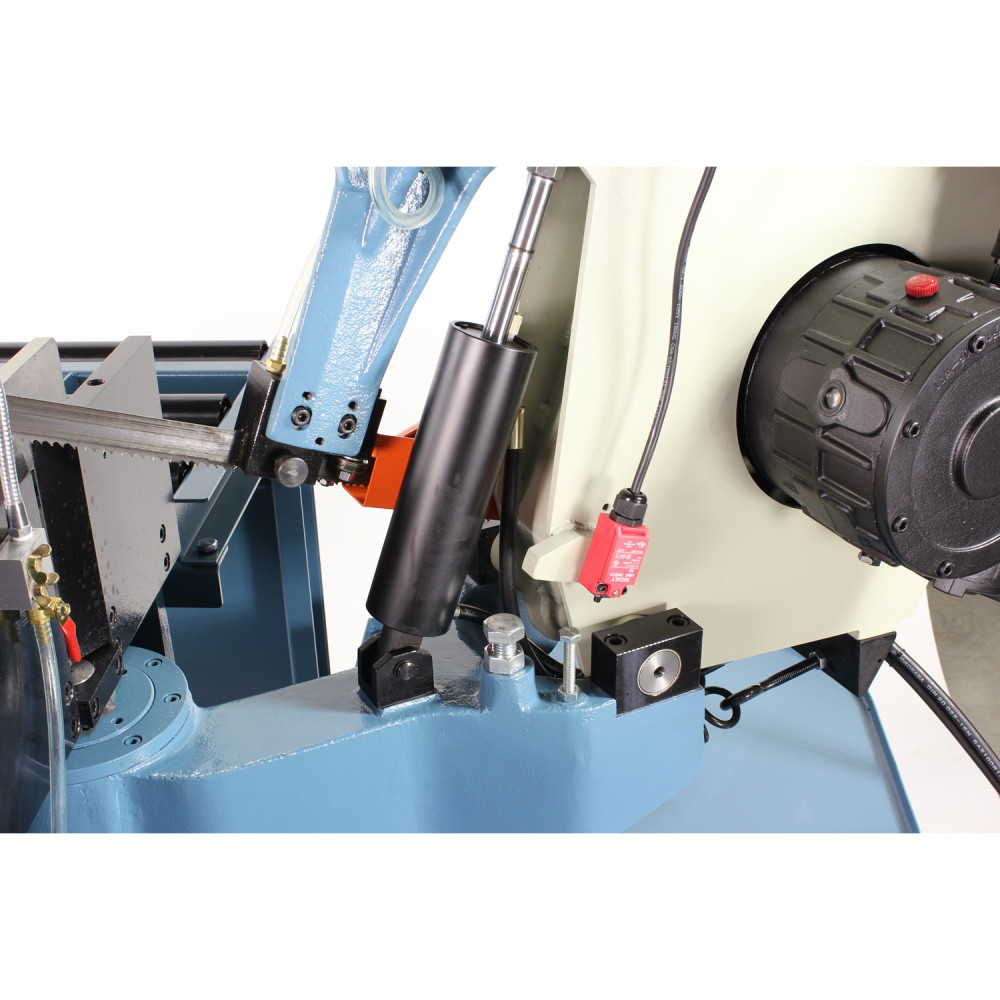

Hydraulic descent allows you to select the proper speed, increasing cut quality and blade life, Roller infeed and outfeed table enables you to slide the material to and from the blade, saving strain

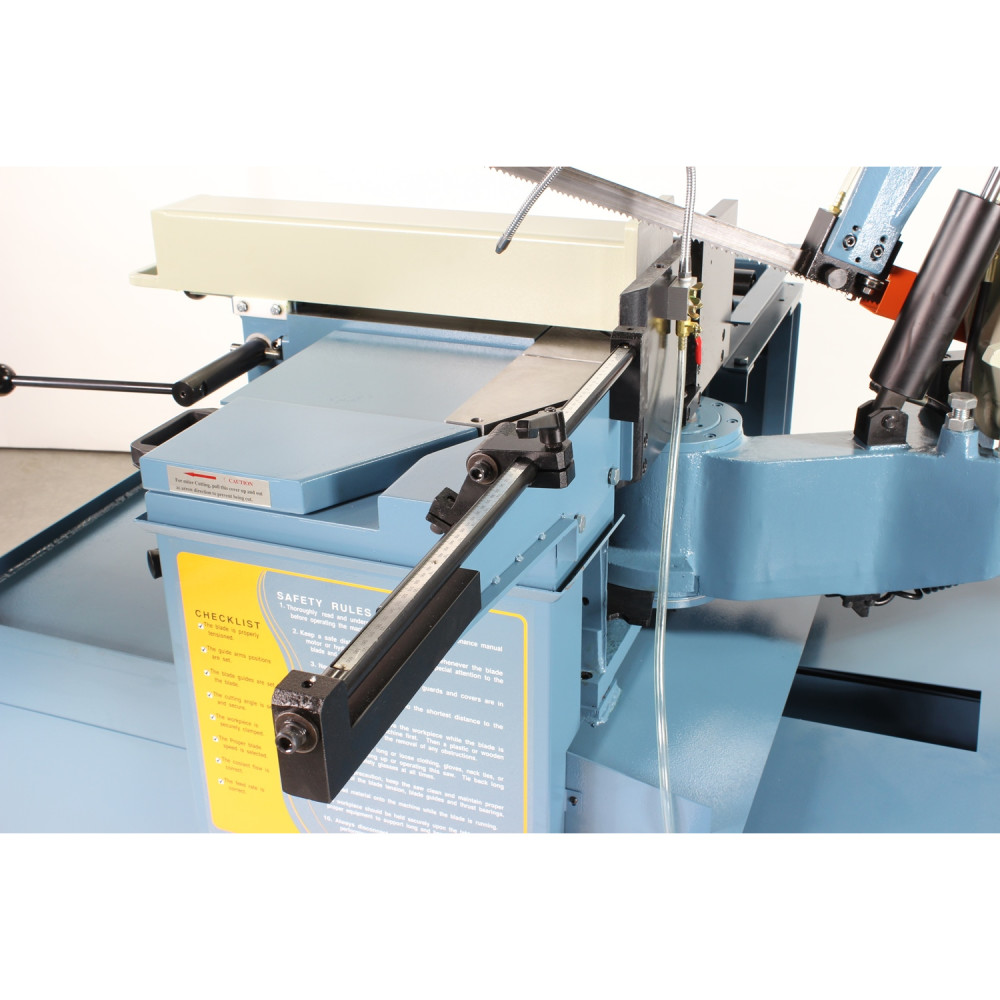

Includes a material stop for conveniently making repeat cuts

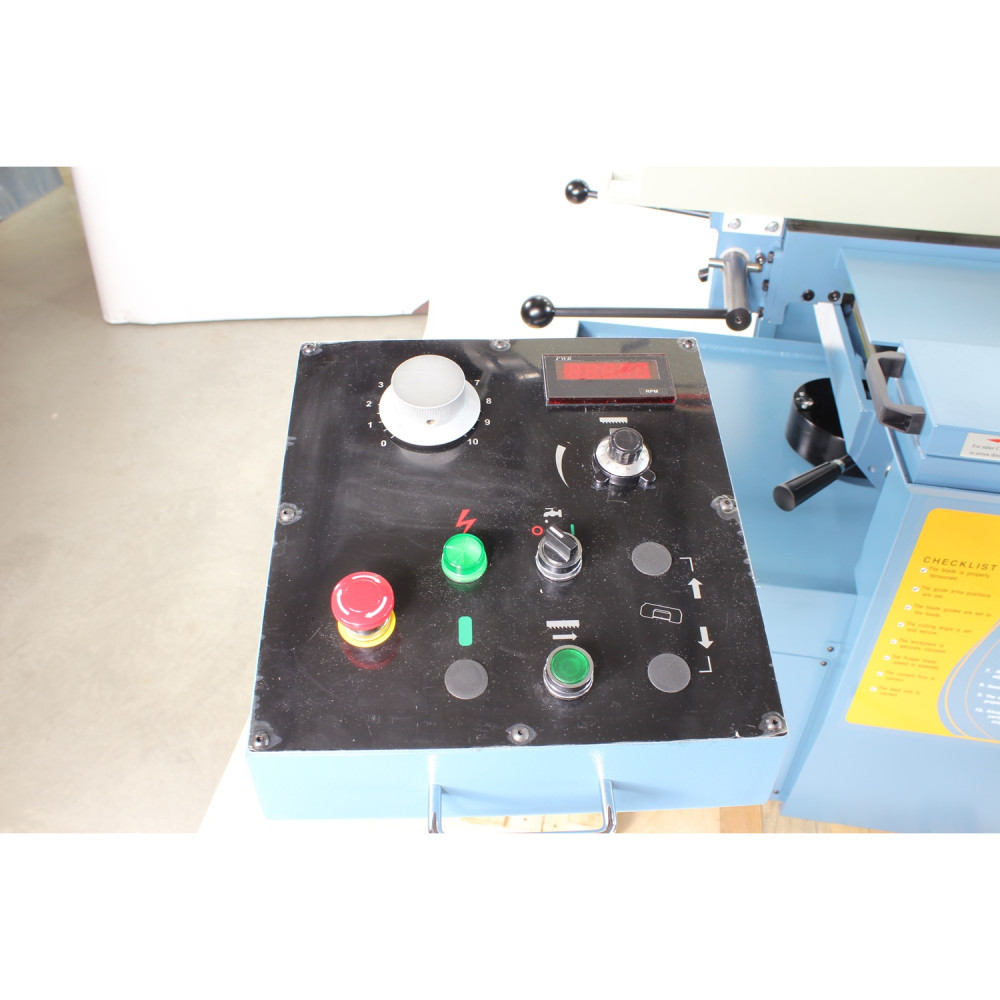

Digital readout shows the blade speed, Adjust the dial to use the same settings for multiples of a part
Electro-welded steel frame keeps vibrations down to a minimum, so your cuts stay straight and accurate

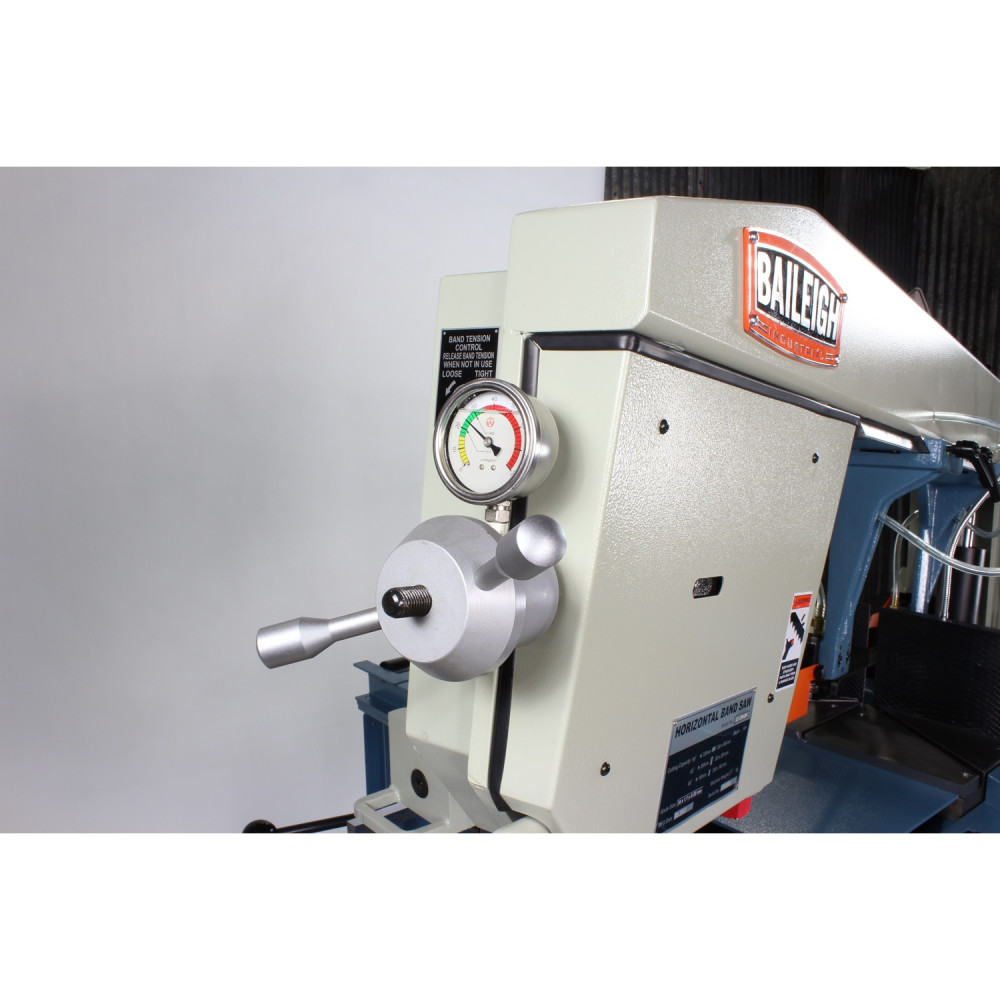

Our patented blade tensioning gauge simplifies the process of checking the tension and adjusting it, Just line the black arrow up with the green area

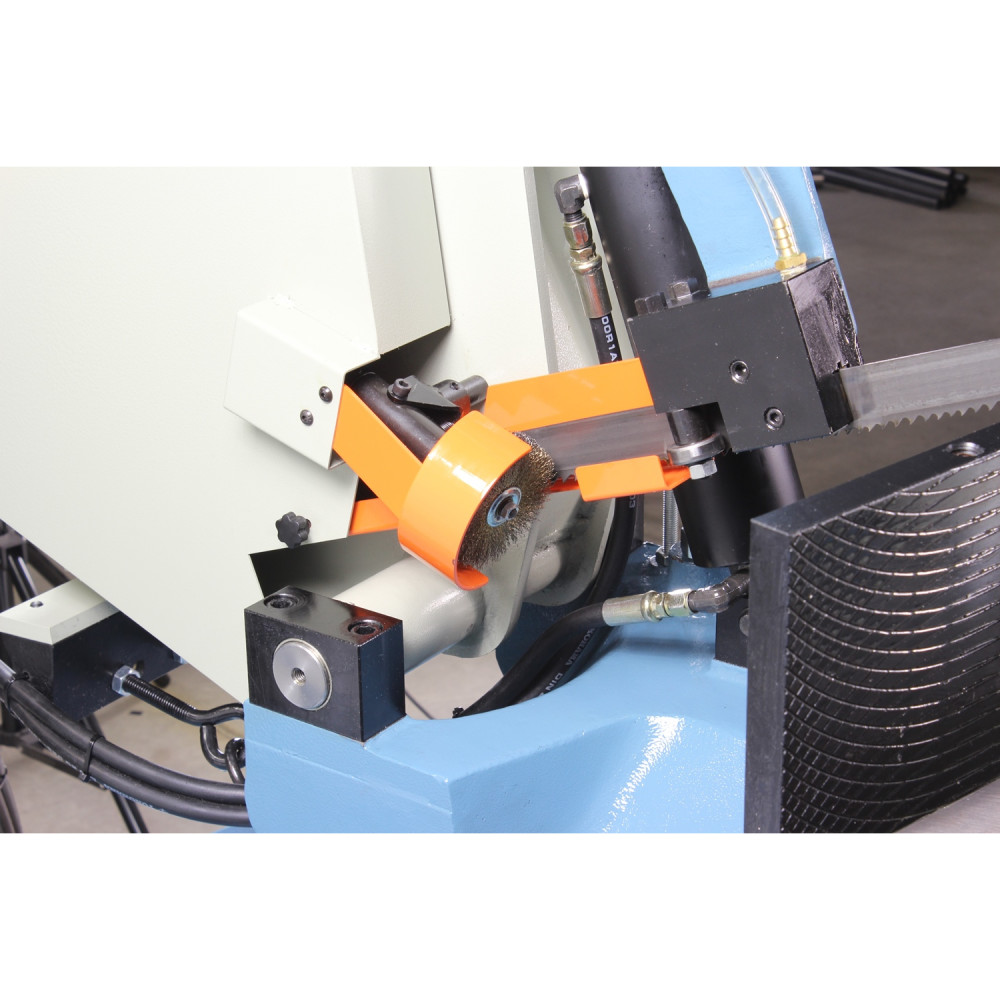

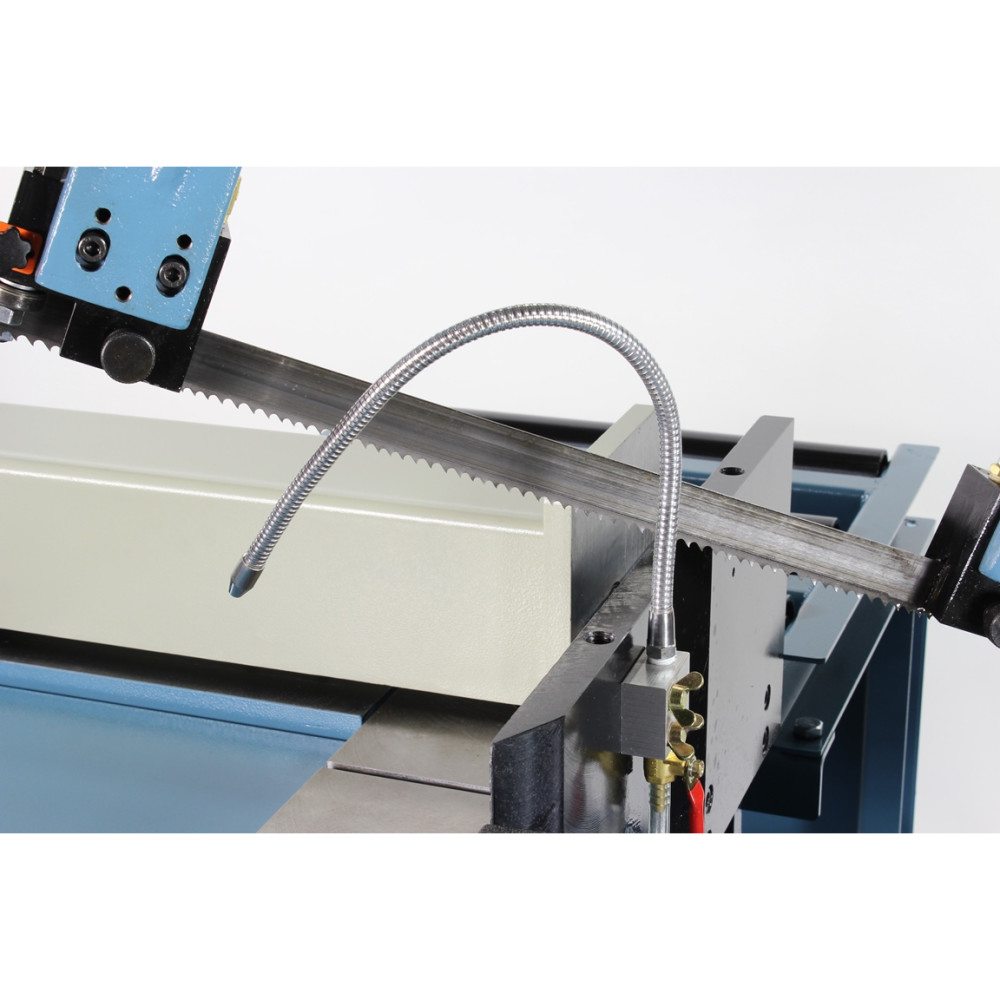

High-pressure flood coolant system washes away chips and helps the blade last longer, Huge chip tray at the bottom collects debris and keeps your shop clean
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001292
Assembled Weight (lbs)
2180
Band Saw Frame Material
Steel

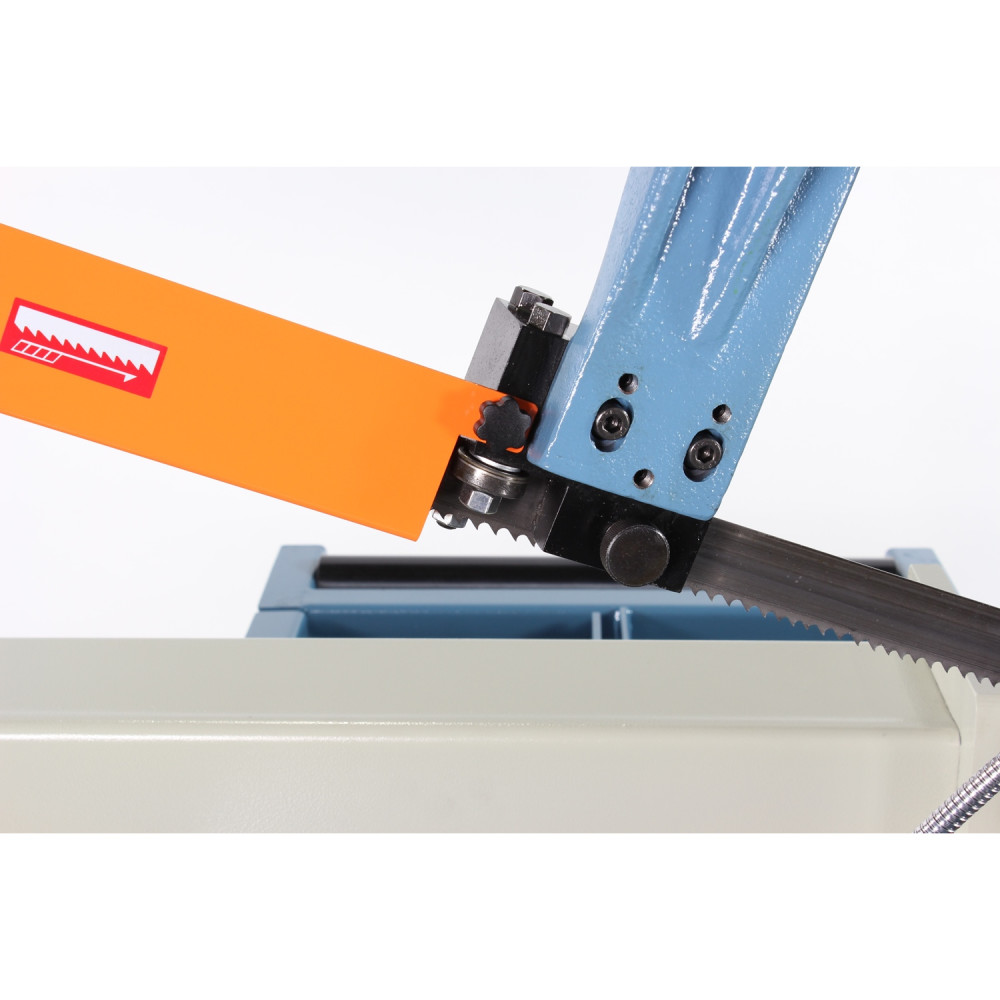

Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Round (90 Deg x 45 Deg x 60 Deg): 13 In. x 12 In. x 8.5 In.; Square (90 Deg x 45 Deg x 60 Deg): 13 In. x 12 In. x 8.5 In.
globalTradeItemNumber (GTIN)
00400001004500
Horsepower (hp)
3
Maximum Blade Length (In)
162.6
Maximum Blade Width (In)
1.3
Maximum Feet Per Minute
306
Minimum Feet Per Minute
60
Package Contents
Band Saw, Large Blade, Material Stop
Package Depth
90
Package Height
67
Package Weight
2180
Phase
3
Stand Included
No
Table Height (in)
30.5
Table Height From Floor (In)
30.5
UPC
400001004500
Variable Speed
Yes
