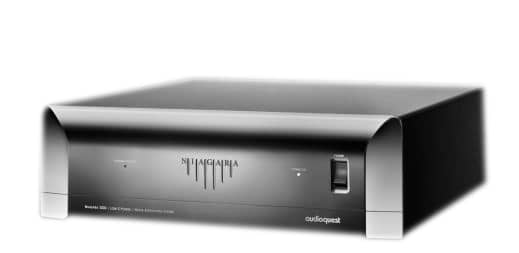

AudioQuest Niagara 5000 Low-Z Power | Noise-Dissipation System

AudioQuest Niagara 5000 Low-Z Power | Noise-Dissipation System – Niagara 5000

Redefining the Science of Power Conditioning

The science of AC power delivery is not a simple one; it demands focus, and the devil is in the details. In fact, the great increase in airborne and AC-line-transmitted radio signals, combined with overtaxed utility lines and the ever-increasing demands from high-definition audio/video components, has rendered our utilities’ AC power a somewhat antiquated technology.

Where Alternating Current (AC) is concerned, we’re relying on a century-old technology created for incandescent lights and electric motors—technology that was certainly never meant to power the sophisticated analog and digital circuits used in today’s premium audio/video systems. To properly accom-modate the promise of today’s ever-increasing bandwidth and dynamic range, we must achieve extraordinarily low noise across a very wide range of frequencies.

Further, today’s power amplifiers are being taxed for instantaneous peak-current demand, even when they’re driven at modest volumes. Although we have seen a substantial increase in dynamics from much of our audio software, the loudspeakers we employ to reproduce them are often no more efficient than they were two to four decades ago. This places great demands on an amplifier’s power supply, as well as the source AC power supplying it.

Our systems’ sensitive components need better alternating current—a fact that has resulted in a host of AC power conditioning, isolation transformer, regeneration amplifier, and battery back-up system topologies. Through differential sample tests and spectrum analysis, it can be proven that up to a third of a high-resolution (low-level) audio signal can be lost, masked, or highly distorted by the vast levels of noise riding along the AC power lines that feed our components. This noise couples into the signal circuitry as current noise and through AC ground, permanently distorting and/or masking the source signal.

Given that the stakes are so high, all sincere attempts to solve this problem must be applauded.

Once the audio/video signal is gone, it’s gone forever…

For AudioQuest, honoring the source is never a matter of simply using premium “audiophile-grade parts” or relying on a proprietary technology—common approaches within our community. For years, we have all been witness to the same, seemingly endless audiophile debates: valves versus transistors; analog versus digital; can cables really make a difference?; and on and on. While we, too, can brag about our many unique technologies, we realize that true audio/video optimization is never a matter of any one secret or exotic circuit. When it comes to noise filtering for AC power, many approaches can yield meaningful results. However, these approaches may also impart ringing, current compression, and non-linear distortions that can render the cure worse than the disease!

The Niagara 5000 features our patented AC Ground Noise- Dissipation System, the widest bandwidth-linearized AC filter in the industry, and our unique passive/active Transient Power Correction Circuit. Boasting an instantaneous current reservoir of over 90 amps peak, the Niagara 5000 is specifically designed for today’s current-starved power amplifiers. Many AC power products featuring “high-current outlets” merely minimize current compression; the Niagara 5000 corrects it.

Though it’s easy to tout a given technology, it’s quite another thing to create a solution that is consistent, holistic, functional, and that honors verifiable science. It’s not enough to reduce AC line noise and its associated distortions at just one octave, thus leaving vulnerable the adjacent octaves and octave partials to noise, resonant peaking, or insufficient noise reduction. Consistency is key. We should never accept superior resolution in one octave, only to suffer from masking effects a half-octave away and ringing artifacts two octaves from there. This is the principal criterion for AudioQuest’s Low-Z Power Noise-Dissipation System.

The Niagara 5000 represents over 20 years of exhaustive research and proven AC power products designed for audiophiles, broadcast engineers, and professional-audio applications. Every conceivable detail has been addressed: In the Niagara 5000, you’ll find optimized radio-frequency lead directionality, capacitor run-in forming technologies developed by Jet Propulsion Laboratories and NASA, and AC inlet and outlet contacts with heavy silver plating over extreme-purity copper, assuring the tightest grip possible.

A great system is built from a solid foundation, and that foundation starts with power. With an AudioQuest Niagara 5000, you’ll experience for the first time the clarity, dimensionality, frequency extension, dynamic contrast, and grip your system has always been capable of delivering—if only the power had been right!

We welcome you to experience the Niagara 5000 and hear firsthand the remarkable results of highly optimized power management: startlingly deep silences, stunning dynamic freedom, outstanding retrieval of ambience cues, and gorgeous delineation of instruments and musicians in space. Once you’ve experienced it, it may seem so elegant, so logical, and so obvious that you find yourself wondering why it hadn’t been done before.

Specifications:

• Surge Suppression: Non-sacrificial (nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive through a building’s AC electrical panel).
• Extreme Voltage Shutdown Voltage: 140VAC (will activate the main high-current relay to open within less than 0.25 second; automatically resets once the incoming power is within a safe range).
• Common-Mode Noise Dissipation:  In excess of 30dB from 20kHz to 100MHz, linearized for dynamic (rising) line impedance with frequency (source) and 10 to 50 ohm load, system current dependent.
• Input Current Maximum Capacity: 20 amps RMS (total).
• Ultra-Linear Noise-Dissipation System AC Power Outlet Banks: 4 Isolated groups – total (bank three through six).
• Number of AC Outlets: 12 (4 High Current/Transient Power Correction; 8 Ultra-Linear Noise Dissipation System Power).
• Power Consumption: Typically, less than 0.25 amps at 120VAC input, or with the power correction switched to Standby setting. (This is dependent on a reactive vector load. For more info, see “Operation and Continuous Use: Rear-Panel Power Correction Switch – Niagara 5000 current draw.”)

Approximate Dimensions:

• Height: 5.24″
• Width: 17.5″
• Depth: 17.2″

Approximate Weight:

• Unit: 38 lbs

Note: Niagara Noise-Dissipations Systems do not ship with an AC power cable.
This gives customers the opportunity to select a cable of the desired length and best possible performance. An appropriate 16-to-20-amp-rated (depending on regional voltage requirements) AC power cable, with an IEC-C19 female end connector and a grounded male plug, must be connected to the Niagara’s AC inlet (IEC-C20) connector. Niagara Noise-Dissipation Systems will function properly with any AC cable that meets these requirements. However, for the best possible results, taking full advantage of AudioQuest’s patented Ground-Noise Dissipation, we highly recommend any AudioQuest NRG Series 16-to-20-amp-rated AC cable. For more info, see our FAQ page

Earth Grounded AC power outlets
Earth Grounded home and office AC power outlets are both recommended for optimal radio-frequency noise dissipation. They are also an electrical code and compliance safety requirement for most building throughout the world. Our products are manufactured within this compliance and safety guidelines, and as such, we highly endorse connection to an AC power source with an electrical Earth ground.

However, there are both legacy homes and even countries that do not subscribe to this practice. For those individuals, and those alone, there is absolutely no loss to the Niagara series AC power or surge protection when operating without connection to an Earth ground. Further, the patented Ground-Noise Dissipation circuitry will still offer a substantial performance advantage, even though the AC outlet you have connected the Niagara Series product to, lacks an Earth ground, or an isolated Earth ground.

Please feel free to consult AudioQuest service is you have any further concerns regarding this matter: [email protected]
