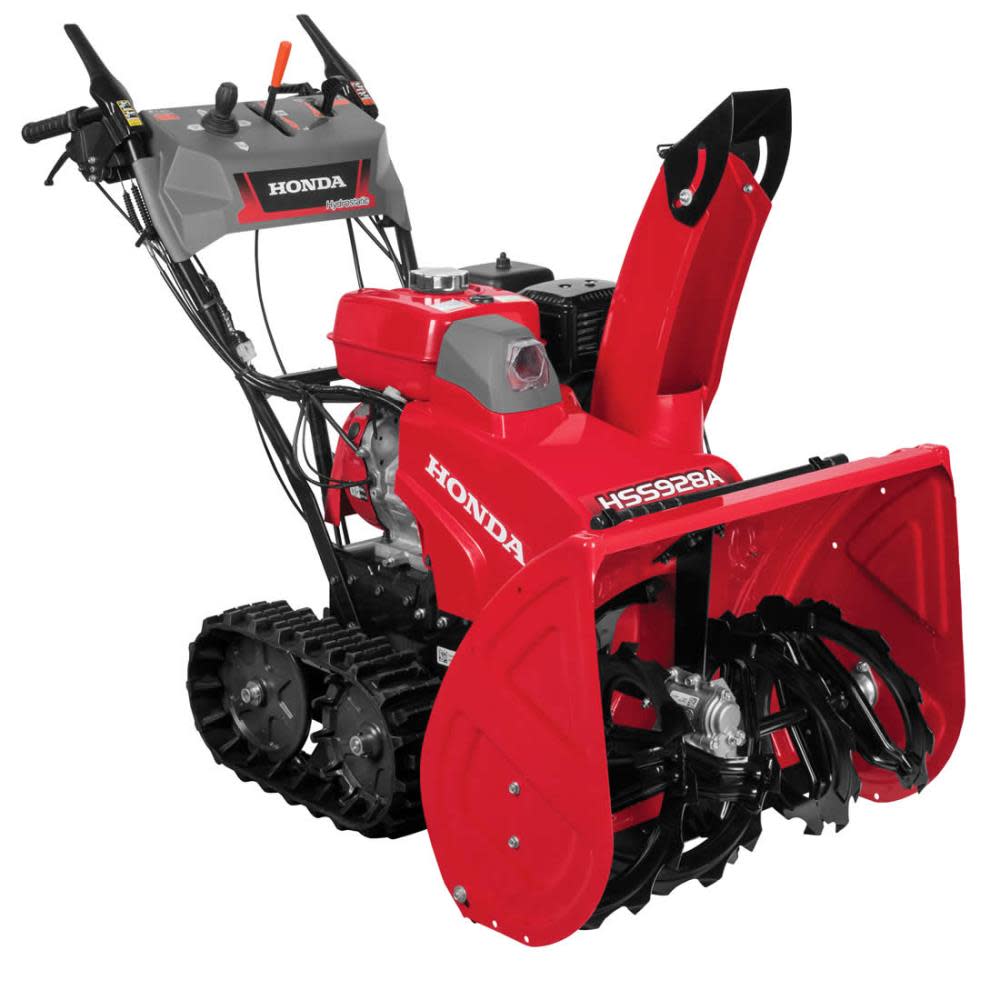

9HP 28In Two Stage Track Drive Snow Blower
ACME Tools is a Honda Authorized Dealer. The Honda wheel driven system makes for superior traction through practically any snow condition. Honda engines have long been recognized as the industry leader in providing reliable, quiet, fuel-efficient power. This dual-stage snow blower is powered by an ultra-robust GX270, overhead valve (OHV) hydrostatic transmission.
Features
The commercial grade GX270 OHV engine offers plenty of power to churn through the snow
Self-propelled, infinitely variable hydrostatic drive
Adjustable auger for unbeatable snow clearing
Easy electric starting Honda OHV commercial grade engine
Clear up to 55 tons per hour
Skid shoes protect the auger housing from wear
Meets all EPA and CARB emission standards
The remote control chute on our two stage blowers is easily adjustable, with up to 210 degrees of rotation and 70 degrees of elevation
Honda’s snow blowers offer ergonomically-designed controls for operator convenience and safety
Ice breaking, heavy-duty, serrated augers with enhanced performance and durability
Metal auger housing
An icing guard is built into the engine
Quiet GX270 engine
Improved muffler deflector reduces noise levels
The 2-stage design uses a fast spinning impeller in the discharge duct to throw snow faster and farther
28 In. clearing width, 20 In. clearing height
Standard work light
One hand control allows operator to easily adjust snow direction and distance with the chute controls
“Glove friendly” fuel cap
Automatic decompression for easy starting
Specifications
Acme Tools Brand Name
HONDA
Acme Tools Part Number
HSS928AAT
Assembled Weight (lbs)
243
Assembly Required
Yes
Auger Material
Steel serrated
Auger Type
Serrated
California Proposition 65 Warning Required
Yes
CARB Compliant
No
Chute Direction Control
Electric
Chute Material
Steel
Chute Pitch Control
Joystick
Clearing Width (in)
28
Color / Finish
Red/Black steel
Country of Origin
United States
Discharge Chute Rotation Angle (Deg)
210
Drift Cutters
No
Drive System
Track Driven
Engine
Honda GX270
Engine Cycles
4 Cycle
Engine Displacement (cc)
270
ETL Listed
No
Fuel Mix Ratio
0
Fuel Tank Capacity (gal)
1.32
globalTradeItemNumber (GTIN)
00786102005555
Handle Type
No Heated Handles
Headlights
Yes
Heated Handles
No
Horsepower (hp)
8.5
Housing Material
Metal
Impeller Diameter
0
Intake Height (in)
12
Internal Supplier Part #
HSS928AAT
Internet Product Code (IPC)
FC7D28D689B
Manufacturer Warranty
3 year residential warranty, see manufacturer owner’s manual for all detailed warranty information.
Maximum Throwing Distance (Ft)
52.5
Number of Forward Speeds
Variable Speed
Number of Reverse Speeds
Variable Speed
Package Contents
Snowblower and Manual
Package Weight
243
Package Weight (lbs)
243
Recommended Oil & Capacity
SAE 5W-30, 1.16 US qt
Recommended Safety Equipment
See operating manual before use and safety labels on the snow thrower.
Rust Resistant
No
Skid Shoes
Yes
Small Engine Maximum Horsepower (hp)
8.5
Small Engine Maximum Torque (ft-lbs)
14.1
Stage
Two Stage
Start Type
Manual
Tire Diameter (in)
0
Tire Width (in)
0
UL Listed
No
UPC
786102005555
Variable Speed
Yes
Weight (lbs)
243
