Description

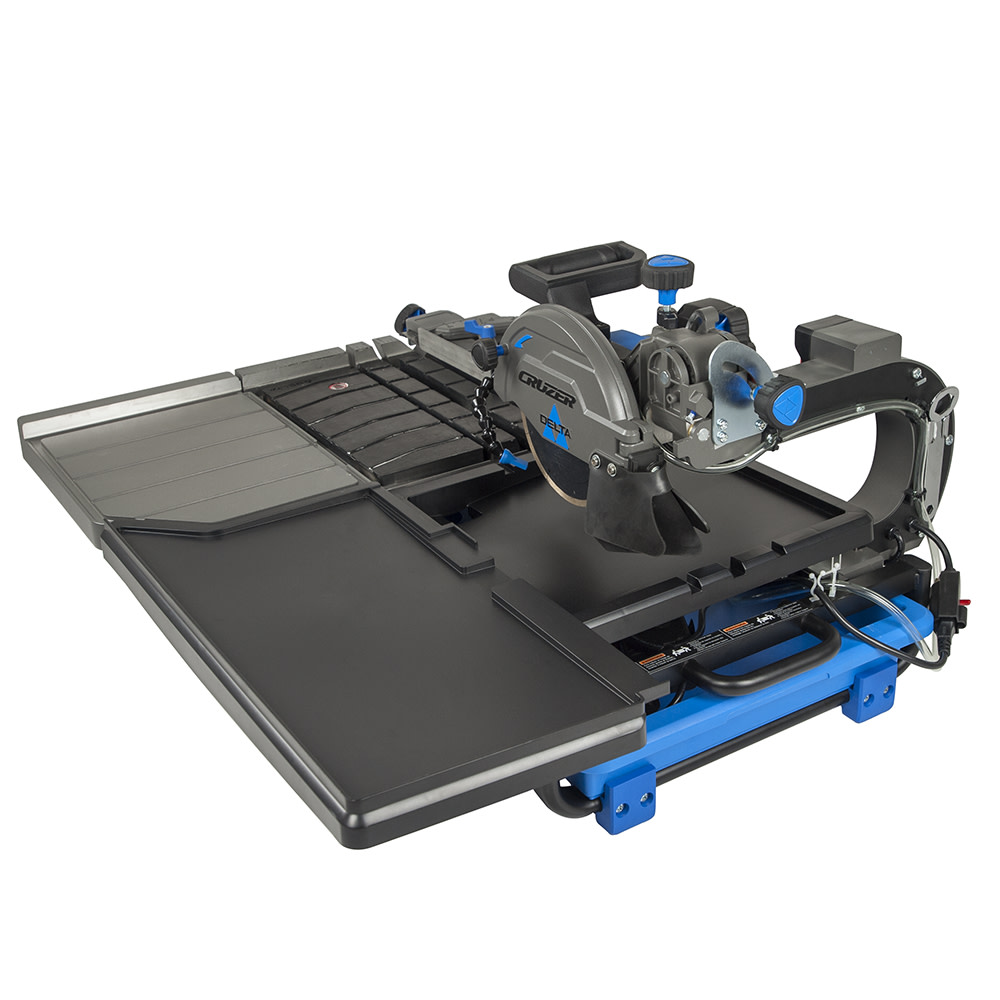

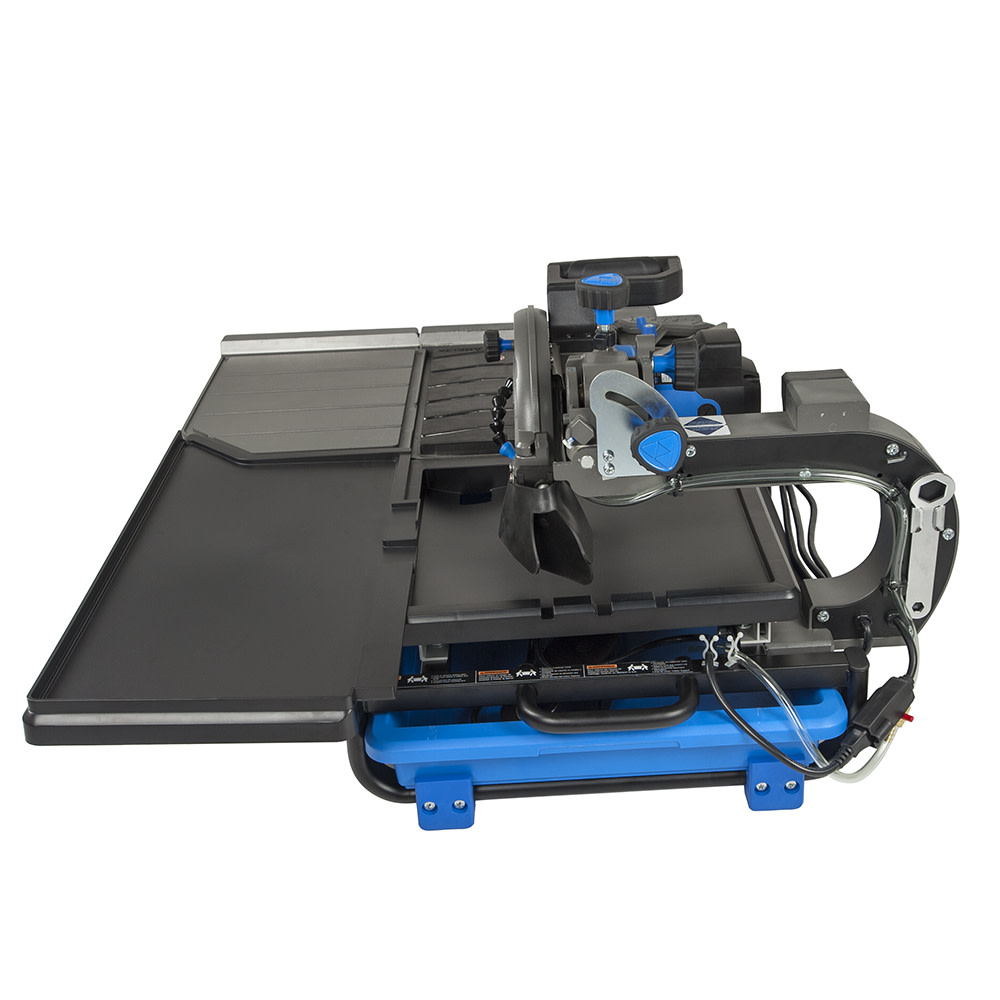

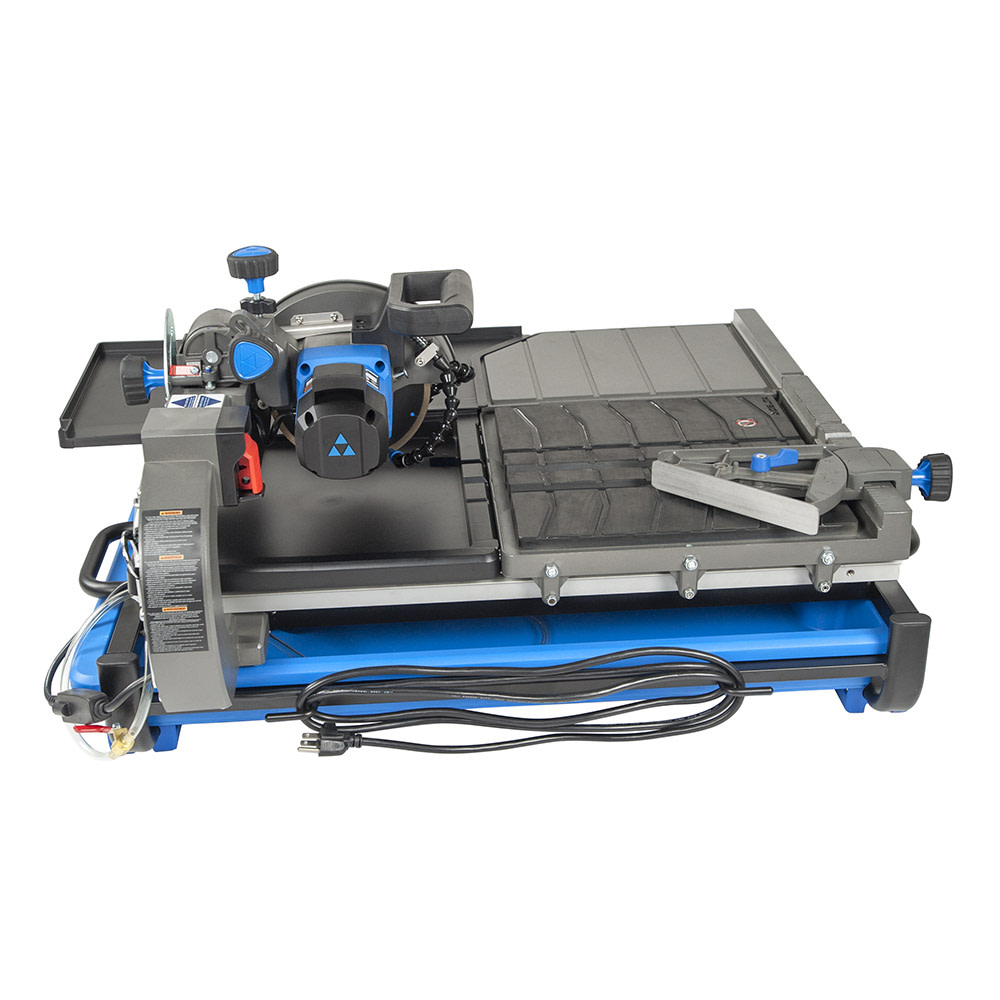

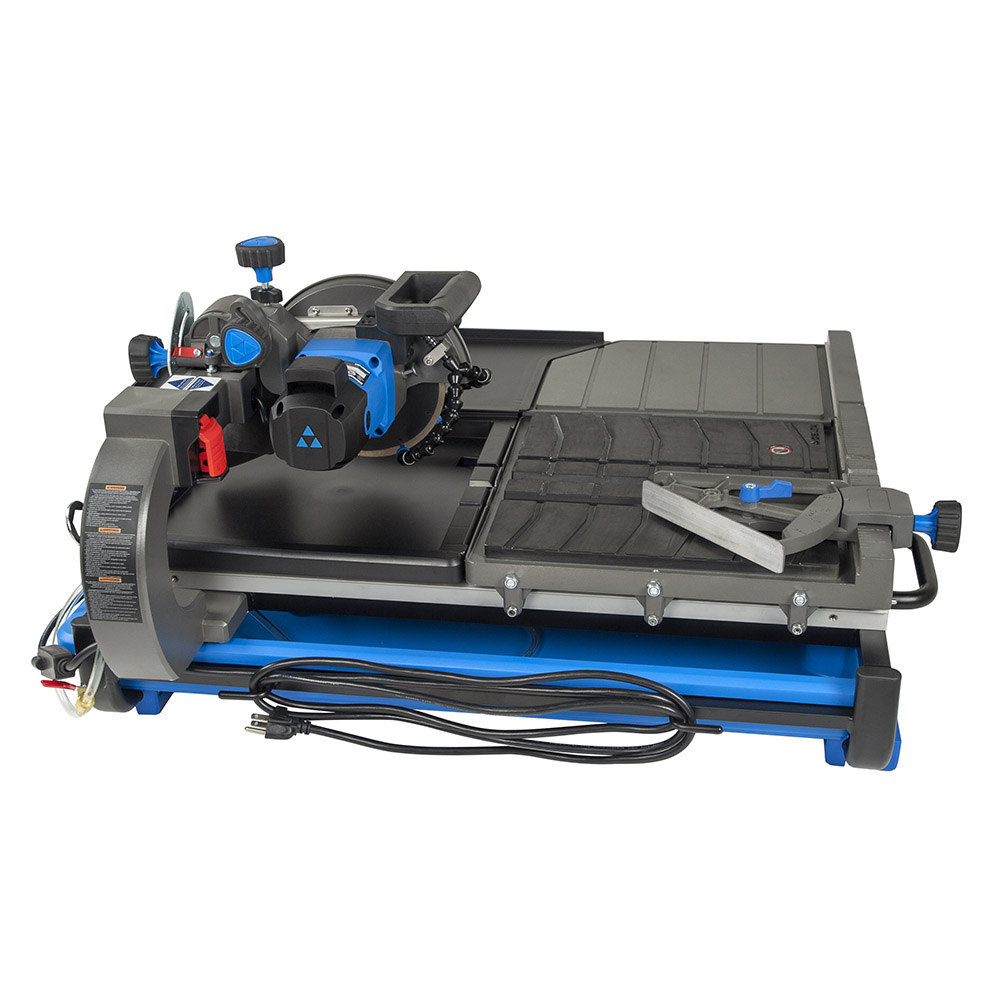

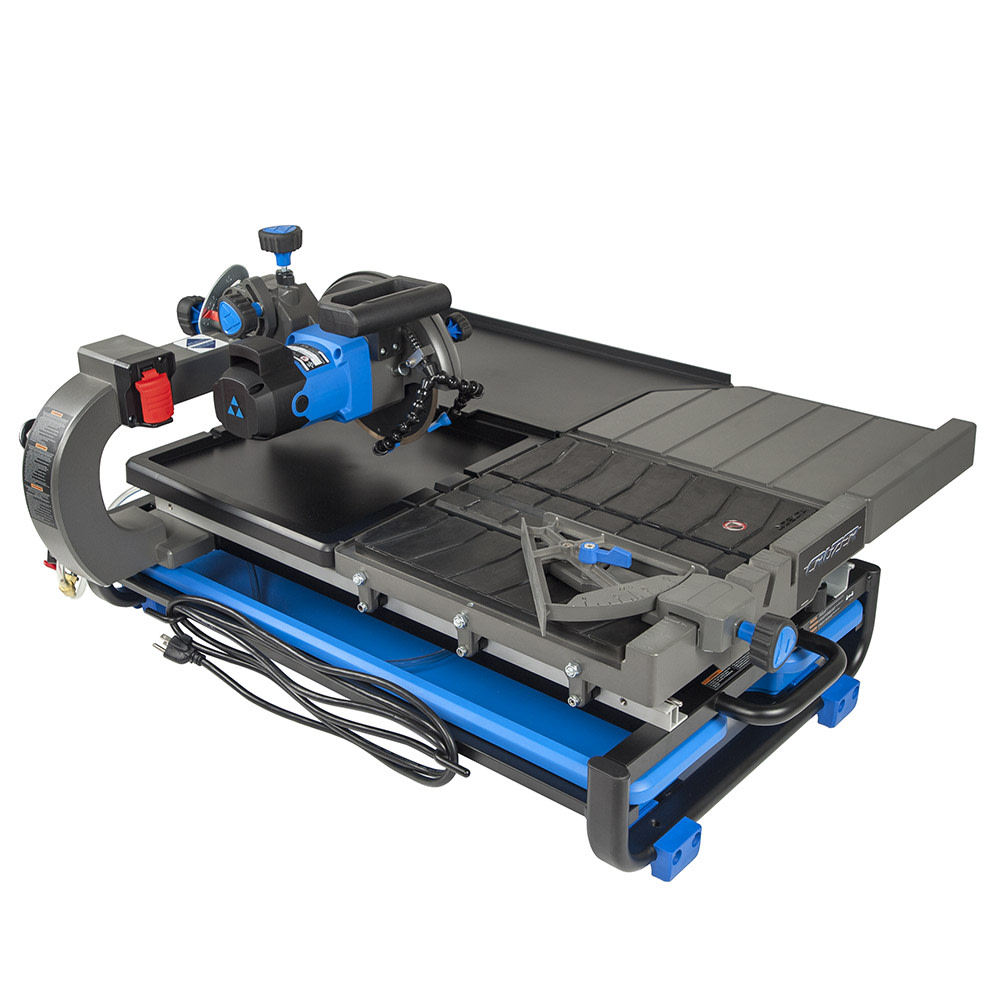

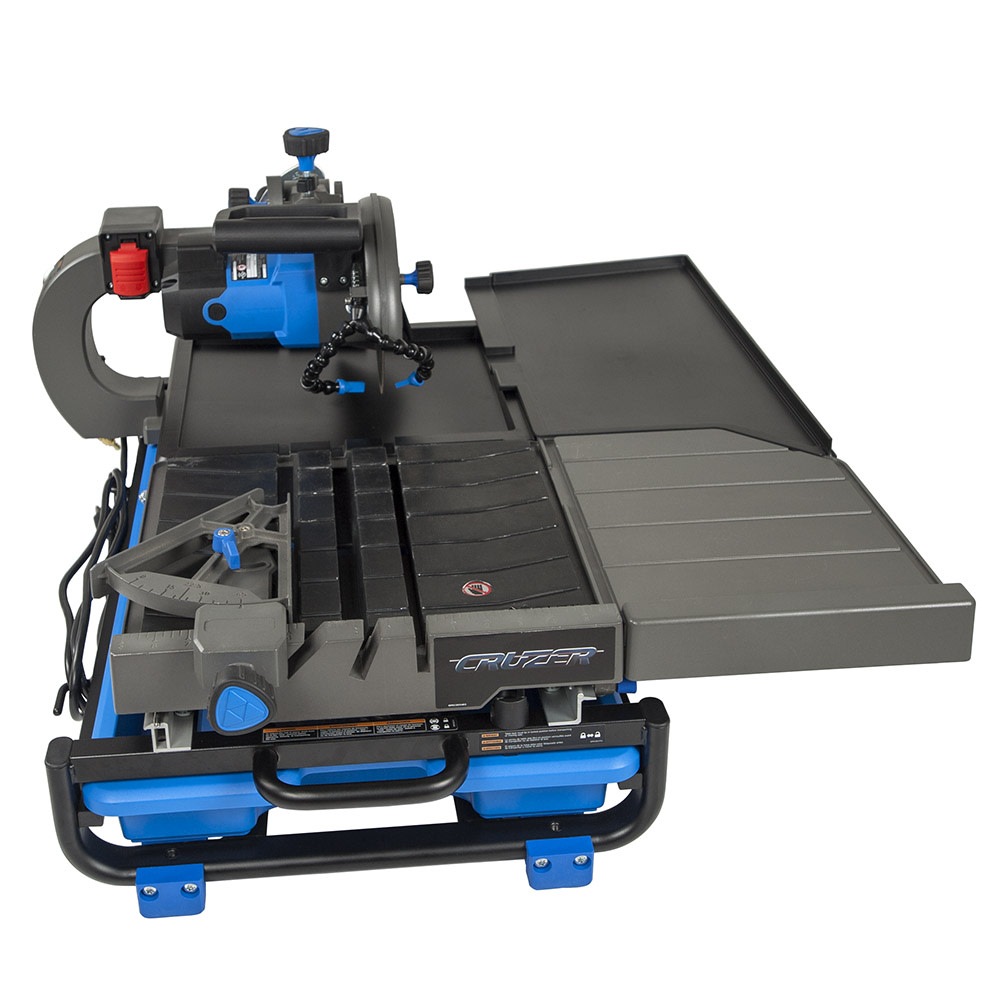

7 Inch Cruzer Wet Saw
The Delta Cruzer 96-107 7″ Wet Tile/Stone Saw uses a 7″ diamond cutting wheel that handles stone up to 2-3/8″. With a heavy-duty rail system engineered for exceptionally straight, accurate, and smooth cuts. Also having a removable extension table for use with larger format tiles is very convenient. The snake pipe water nozzle allows precise water control and placement. Front access to the water tray greatly simplifies cleaning and draining processes.
Features
Powerful 13 Amp Motor will cut through natural and man-made tile and pavers
Largest rip/diagonal cutting capacity in its class
Heavy duty rip fence with positive stops at 0°, 22.5°, and 45°
Saw frame constructed of durable steel pipe
Water supply line is externally mounted and easily accessible for cleaning or replacement
Blade guard easily opens and secures with finger knob
Blade splash guard and back splash tray keeps work area dry and returns water to the tray
Water pump designed for use in the water tray or side bucket
Divider in water tray filters slurry and extends pump life
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
96-107
Amperage (A)
13
Arbor Size (in)
5/8
Assembled Depth (in)
34.75
Assembled Height (in)
19.75
Assembled Weight (lbs)
63
Assembled Width (in)
32.75
Beveling Capability
Yes
Blade Diameter (in)
7
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Taiwan
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Cuts Porcelain
Yes
Diameter
7 in
globalTradeItemNumber (GTIN)
00847962006301
Height (in)
19.75
Horsepower (hp)
Universal Motor
Maximum RPM
5300
Maximum Tile Cut Size Diagonal
18
Maximum Tile Cut Size Rip
24
Package Contents
(1) Cruzer 7″ Wet Tile/Stone Saw, (1) blade, (1) Owners manual
Package Depth
39
Package Height
15
Package Weight
63
Package Weight (lbs)
64
Size
5/8 in
Sliding
Yes
Stand Included
No
UL Listed
Yes
UPC
847962006301
Used With
Natural and man-made tile and pavers
Voltage
120 Volts
Water Pump
Yes
