Description

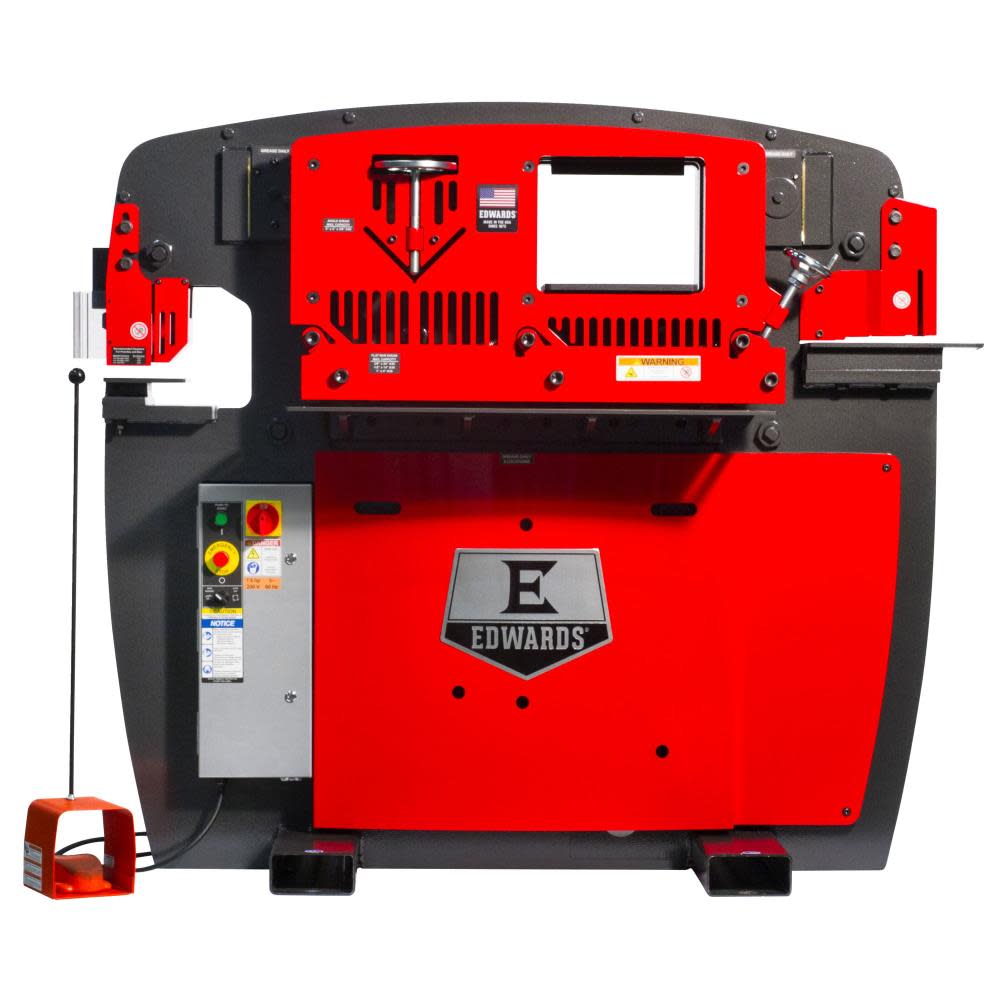

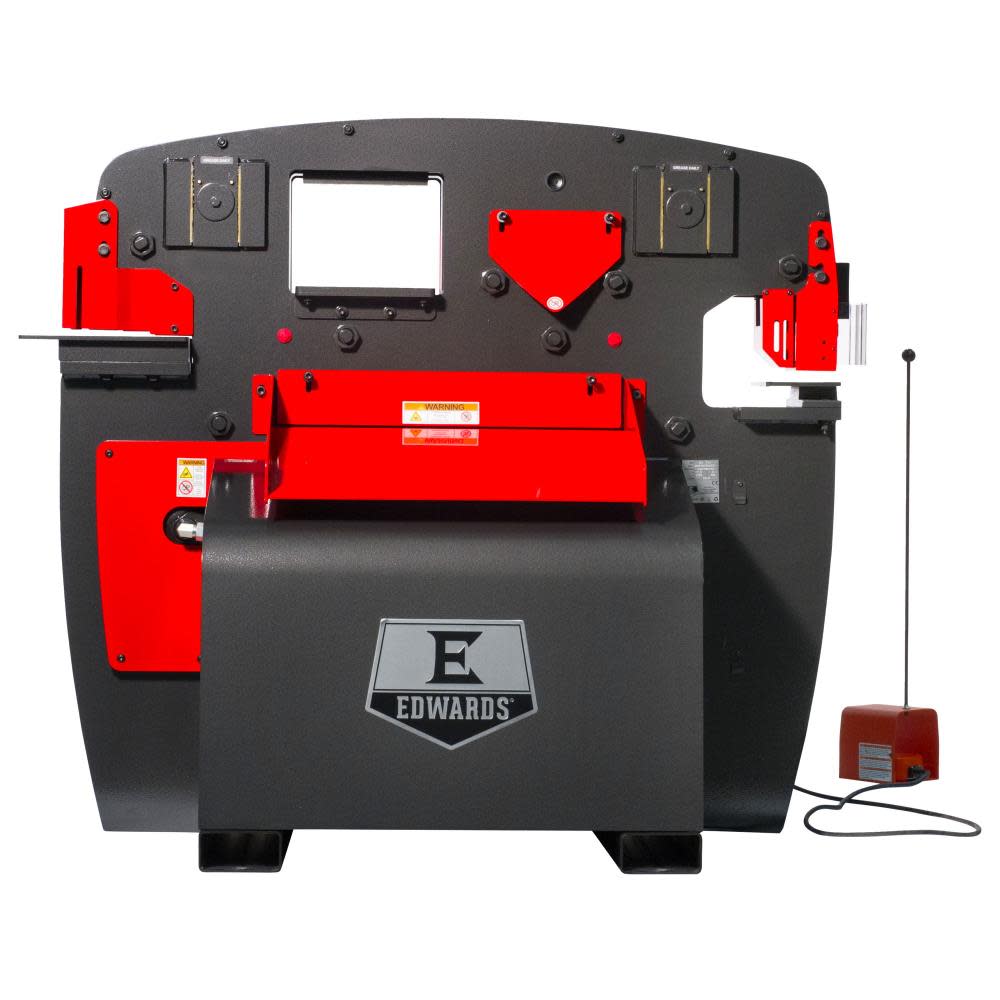

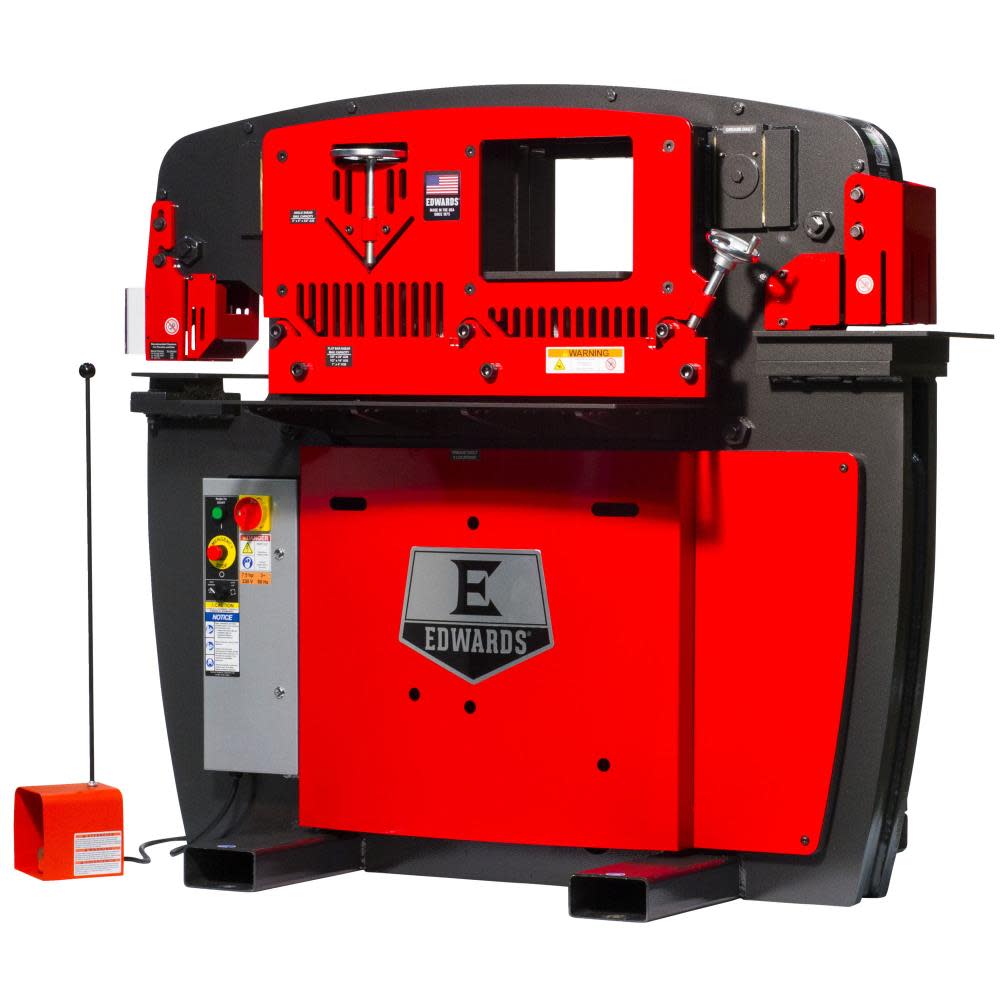

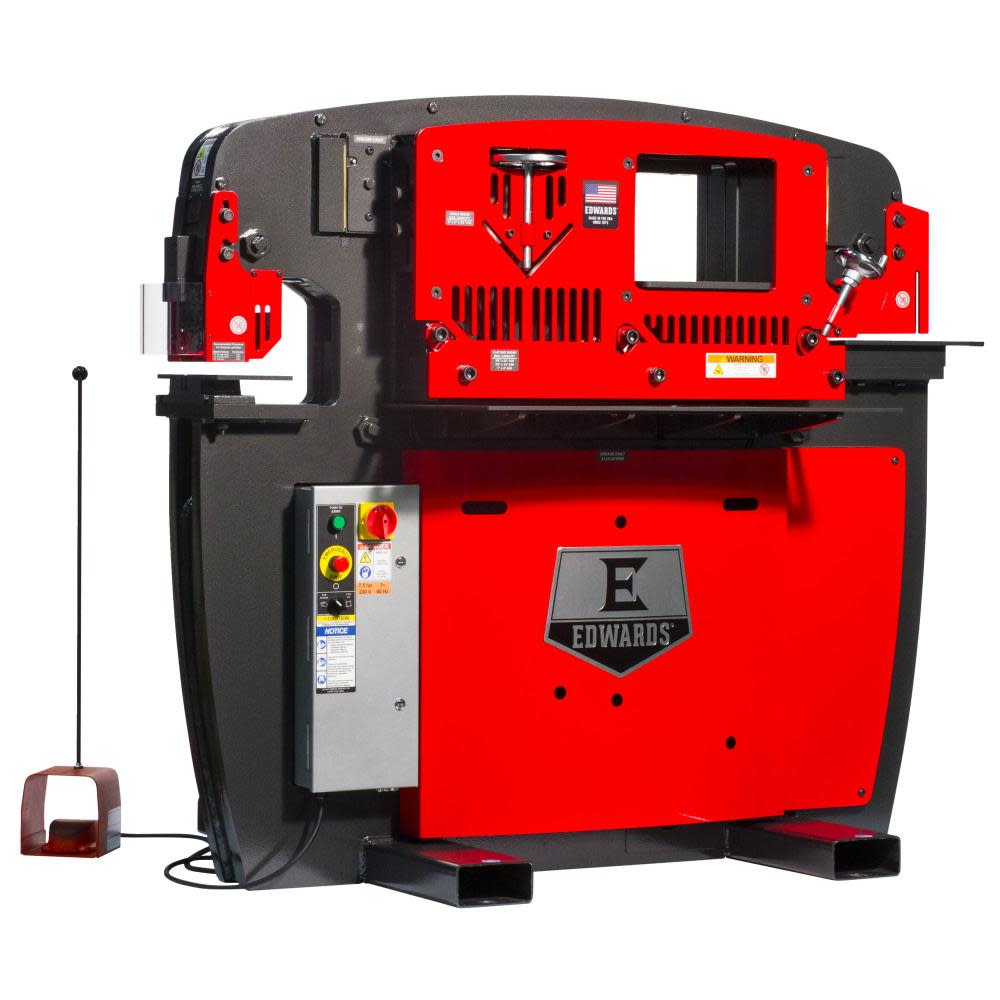

65 Ton Ironworker 1 Phase, 230v with PowerLink System
The five workstations of the Edwards 65 ton jaws ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a punch assembly with pedestal die table, 24 In. wide flat bar shear, angle shear, coper notcher and a universal open tooling station designed for optional tooling accessories. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Our most versatile machine
Five workstations: standard (5) – punch, flat bar shear, angle shear, coper notcher & rod shear
10 interchangeable attachments available to tailor the ironworker to your project
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW65-1P230-AC700
Amperage (A)
36.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
4655.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
ETL Listed
Yes
globalTradeItemNumber (GTIN)
00731325556575
Horsepower (hp)
7.5
Internal Supplier Part #
IW65-1P230-AC700
Internet Product Code (IPC)
1341FA2D179
Manufacturer Warranty
1 Year
Maximum RPM
1765
Motor Horsepower (hp)
7.5
Motor Voltage (V)
230.0
Overall Height (in)
63.0
Overall Length (in)
46.0
Overall Width (in)
69.0
Package Contents
Notcher
Package Depth
46
Package Height
63
Package Weight
4750
Package Weight (lbs)
4750
Reservoir Capacity (gal)
17.0
UL Listed
Yes
UPC
731325556575
Voltage
230
Weight (lbs)
4655.0
