Description

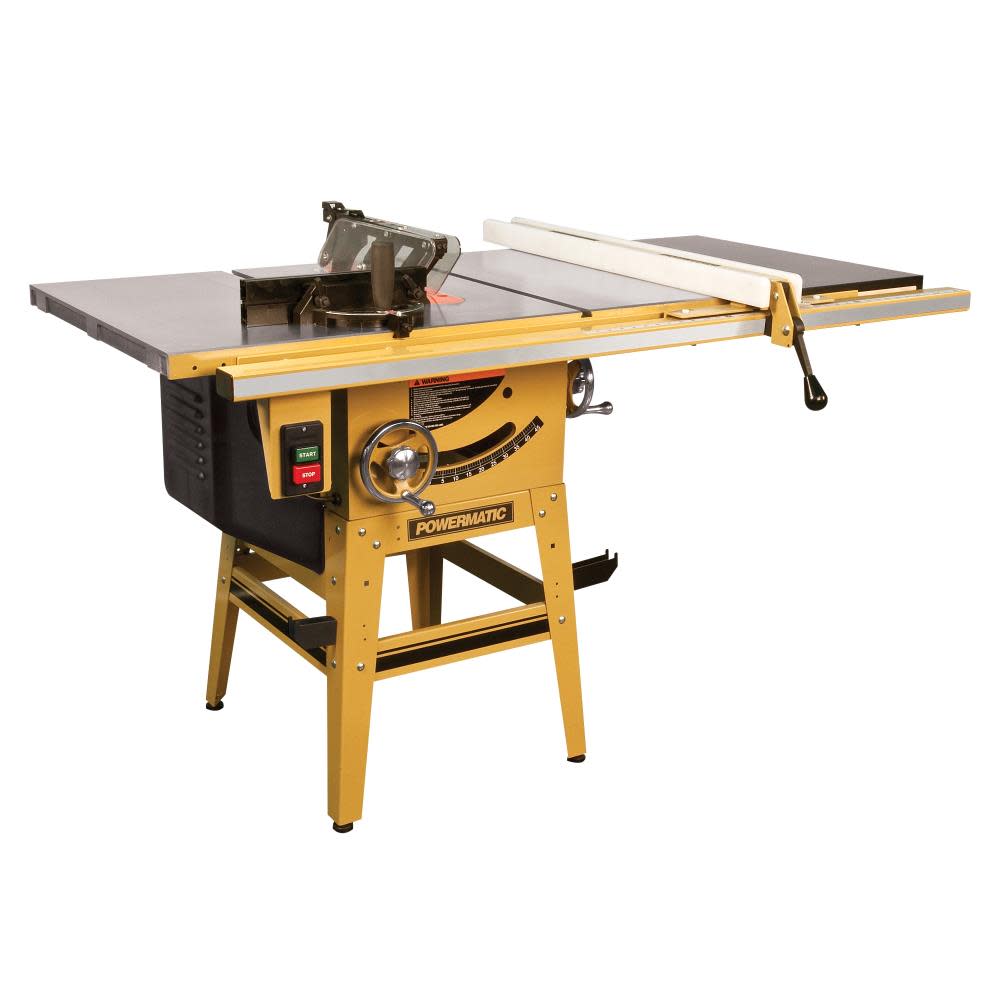

64B Table Saw, 1.75HP 115/230 V, 30 In. Fence with Riving Knife
The 64B, 1.75HP 115/230V, 30-Inch Fence with Riving Knife, from Powermatic, helps you to prep your boards for construction or remodeling projects. It sports a powerful, 1.75hp motor that helps it achieve a top speed of 3,800 rpm. This Powermatic 64B table saw’s riving knife prevents binding and kickbacks for safer work. The miter gauge features a micro adjustment system for more precise work. Its Accu-Fence® locks securely into the rails without play for consistent results. The Powermatic table saw’s handwheels have a rust-resistant chrome trim and are designed for comfort. An integrated dust extraction port keeps particles out of your eyes.
Features
Powermatic 64B table saw comes with riving knife, blade guard, miter gauge, 4 hex keys, 2 open-end wrenches, arbor wrench and table extensions (blade not included)
Makes rip cuts in boards up to 30 inches
Single-phase table saw’s 1.75hp motor delivers a top speed of 3,800 rpm

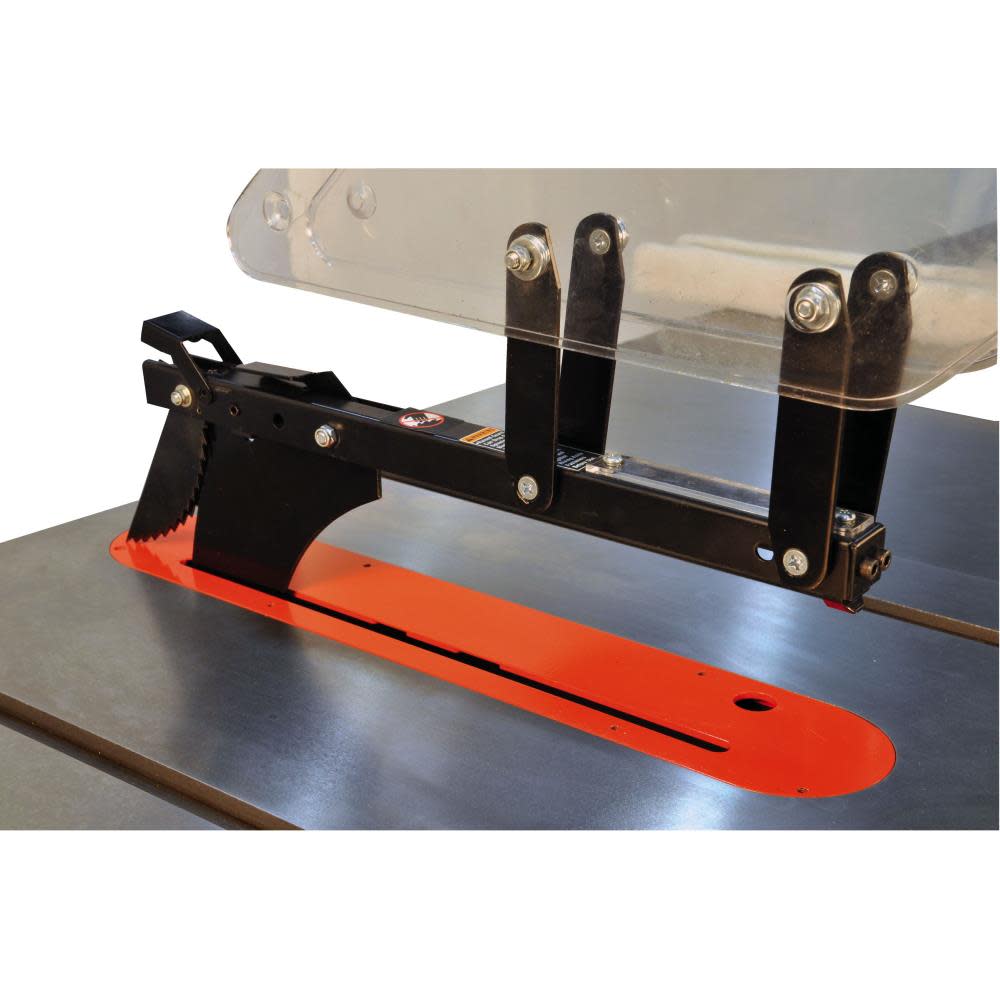

Riving knife prevents blade from binding and kicking back
Powermatic table saw’s miter gauge allows for precise adjustments

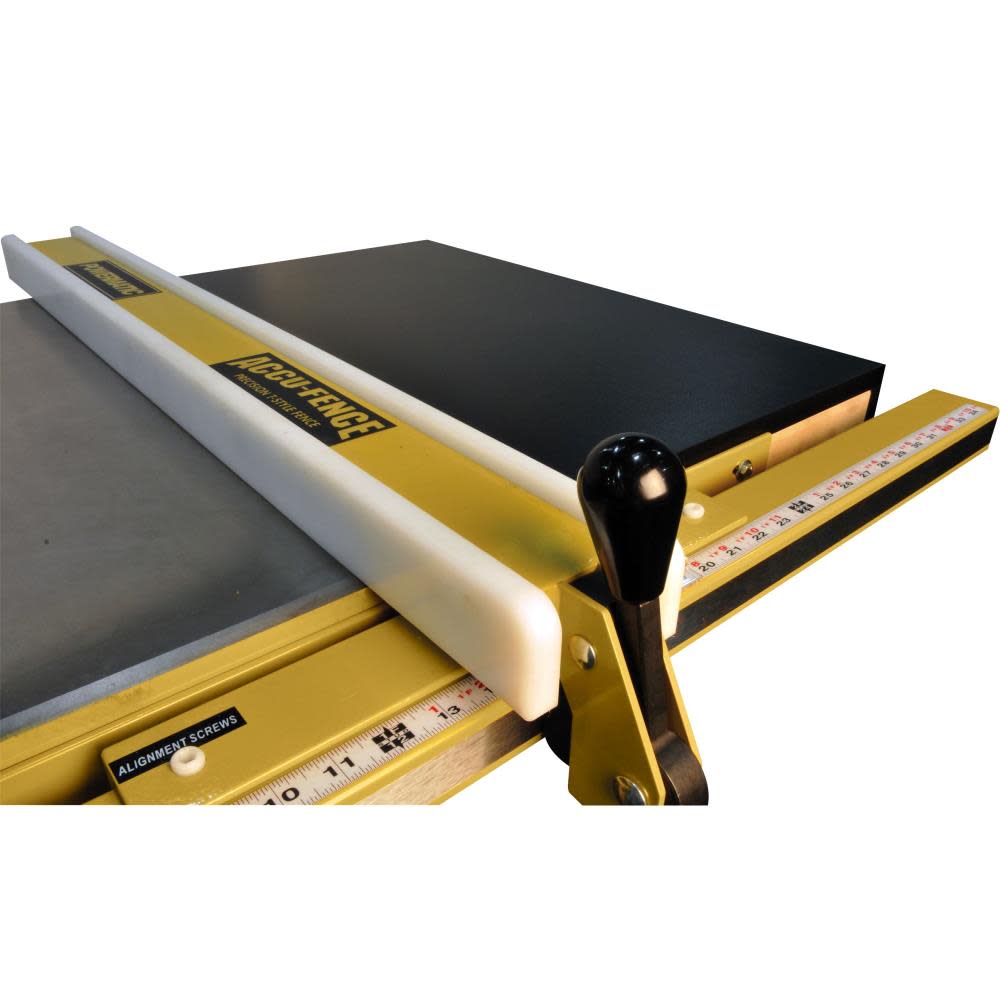

Accu-fence securely locks into the rails

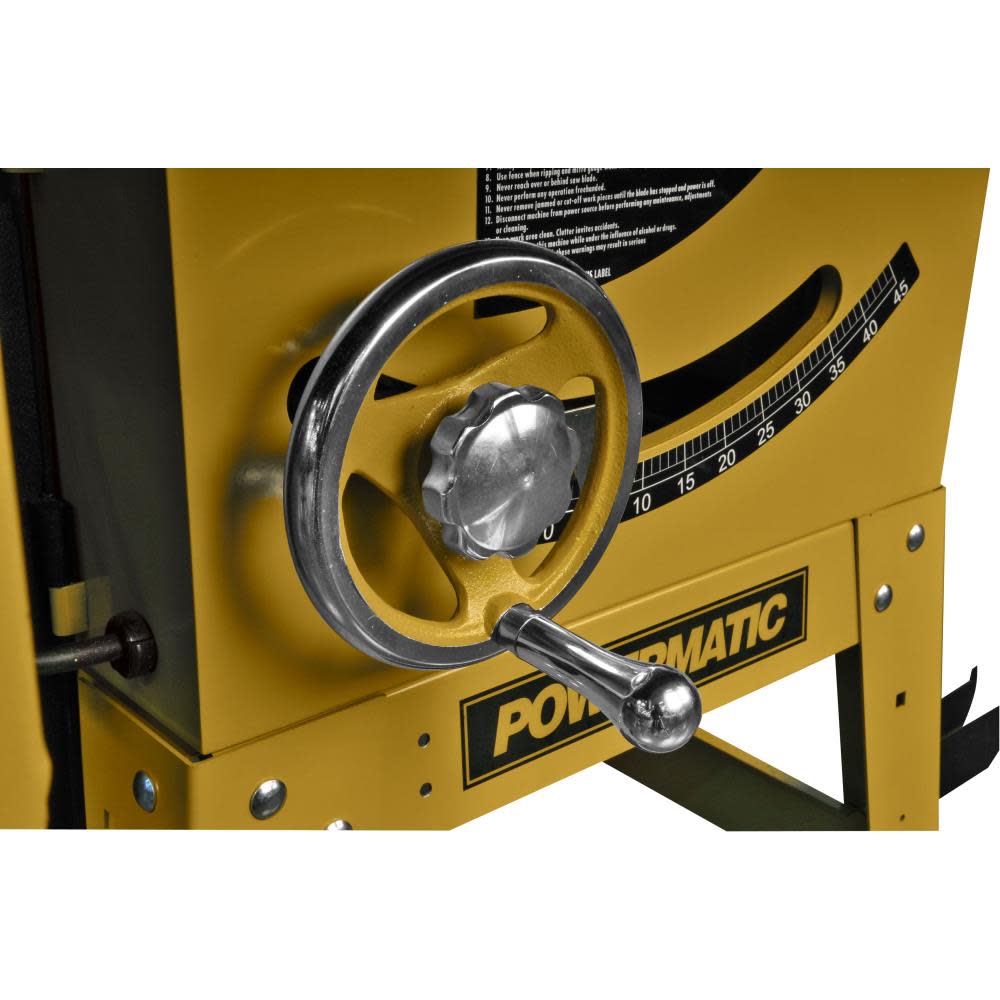

Comfortable handwheels feature rust-resistant chrome trim
Dust extraction prevents dust from getting in your eyes
5-year warranty covers residential use; 2-year commercial warranty
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791229K
Amperage (A)
52
Arbor Size (in)
0.625
Assembled Weight (lbs)
421.85
Bench or Stationary
Stationary
Bevel Direction
Left Bevel
Blade Diameter (in)
10.0
Blade Material
N/A
Blade Speed (rpm)
3800
California Proposition 65 Warning Required
Yes
Caster Platform Included
No
Color / Finish
steel
Cord Length (ft)
7.0
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drive Motor System
Electric
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4.0
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
globalTradeItemNumber (GTIN)
00731325184556
Horsepower (hp)
1.75
Internal Supplier Part #
64B-30
Internet Product Code (IPC)
2F242F06F9D
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Dado Diameter (In)
8.0
Maximum Dado Width (in)
0.8125
Micro Adjust Fence
Yes
Miter Gauge
Yes
Miter Slot Depth
0.375
Miter Slot Width
0.75
Net Tool Weight (lbs)
293.0
Number of Miter Slots
2
Package Contents
instruction manual, cast iron table extensions, blade guard, miter gauge with extension fence, rail set, blade tilt handwheels, adjustable foot pads, blade elevation handwheels, motor cover
Package Depth
39
Package Height
22
Package Weight
421.85
Package Weight (lbs)
421.85
Repetitive Cut Marking system
No
Size
0.625 in
Spindle Lock
Yes
Table Height (in)
36.0
Table Height From Floor (In)
36.0
Table Length (in)
71.25
Table Material
Cast Iron
Table Space in Front of Blade
11.5
Table Width (in)
27.0
UL Listed
No
UPC
731325184556
Voltage
115/230 Volts
