Description
60HH, 8″ Jointer, 2HP 1PH with Heli

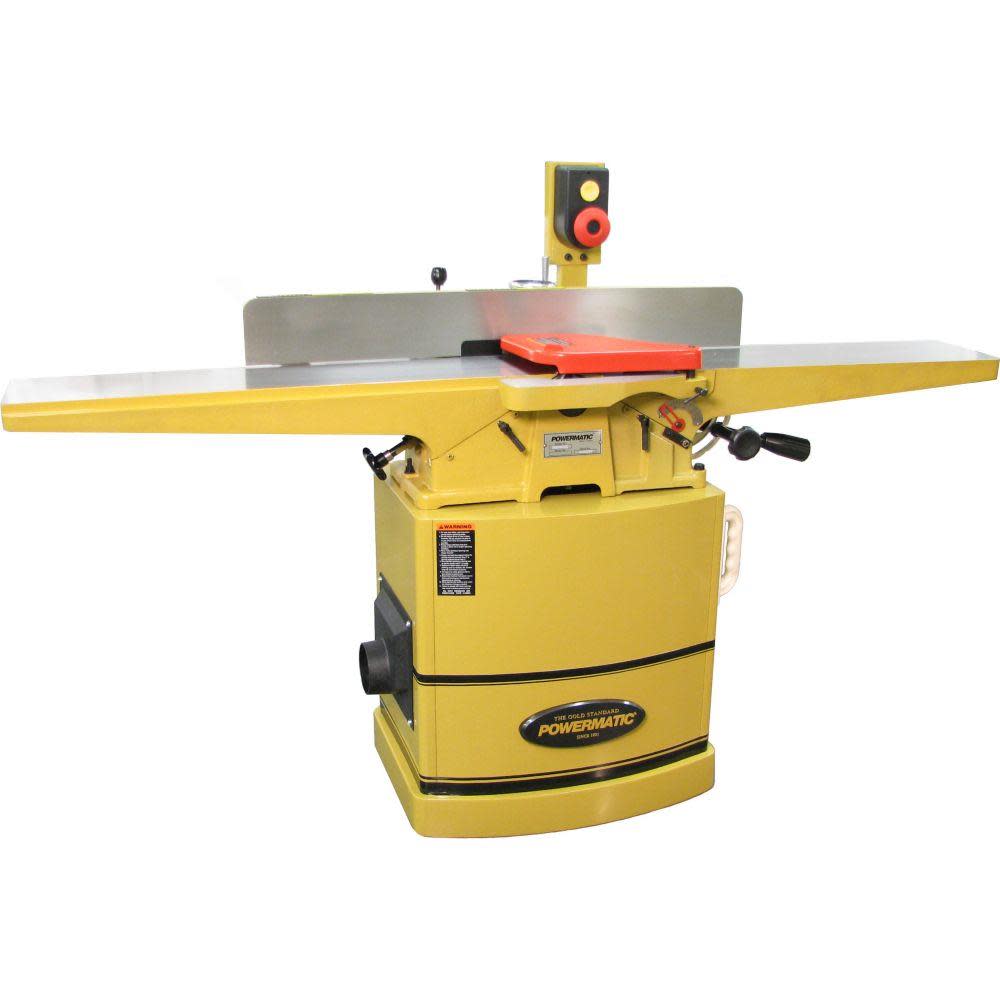

The 60HH 8-Inch Jointer, 2HP 1Ph 230V, Helical Head, from Powermatic, helps you to square away the corners of boards for more uniform results at the end of your project. It has a powerful 2hp motor that runs at a maximum speed of 7,000 rpm to make quick work of tough pieces. This Powermatic 8-inch jointer has an extended table to help you balance longer pieces with more stability. A non-marring fence insert protects the table from damage. The Powermatic jointer has a helical cutting head with carbide inserts, which delivers a finer finish and provides quiet and smooth operation. Its adjustment lever allows you to make precise adjustments to the cutting depth for precisely matching one board to the next.
Features
Powermatic 8-inch jointer comes with fence
Provides true squared edges for professional-looking work
Stationary jointer’s 2hp motor delivers a top speed of 7,000 rpm
Long table helps to balance larger pieces
Powermatic jointer’s non-marring fence insert prevents damage to the table

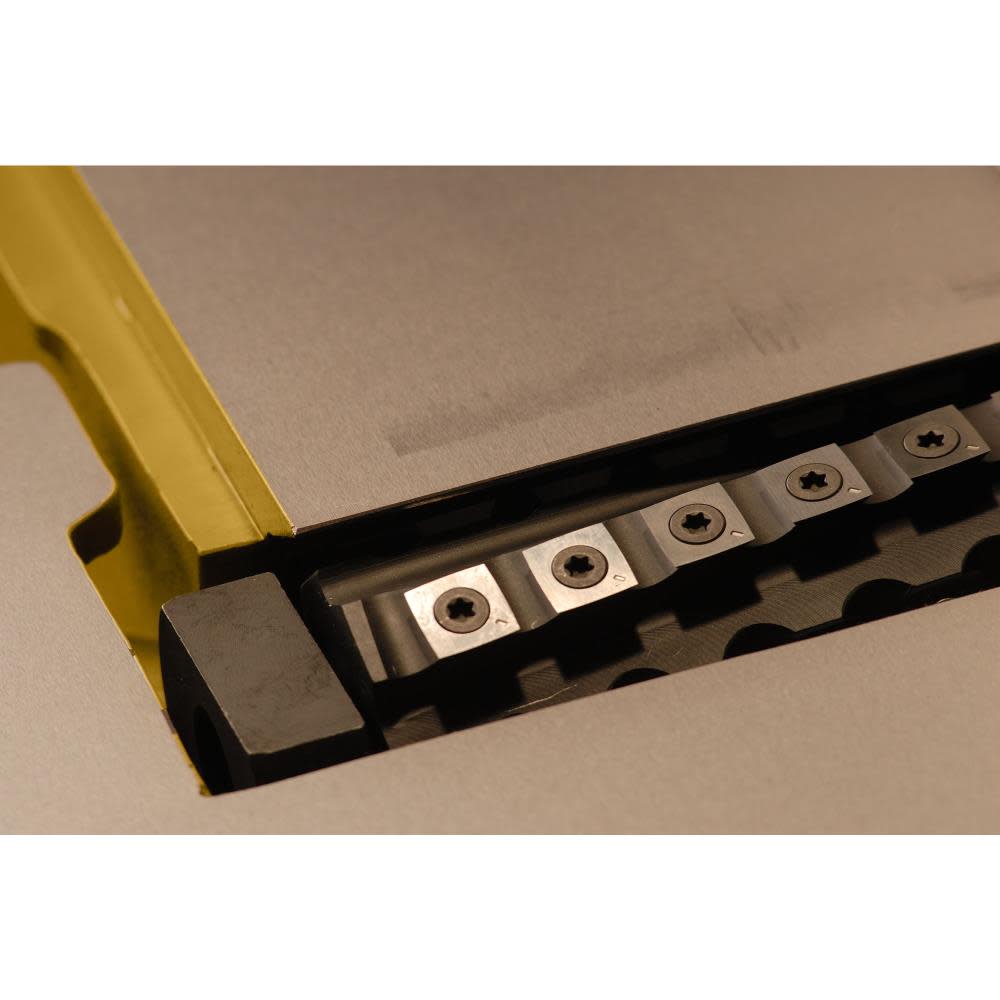

Helical cutting head with carbide inserts delivers smooth, quiet work and a fine finish
Adjustment lever allows for precise cutting depth adjustments
5-year warranty for residential use; 2-year warranty for commercial applications
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1610086K
Adjustable Depth Stops
Yes
Amperage (A)
9
Assembled Weight (lbs)
490
Bench or Stationary
Stationary
Blade Count
54
Blade Height (in)
0
Blade Material
Steel
Blade Thickness (in)
0
Blade Width (in)
8
California Proposition 65 Warning Required
Yes
Caster Platform Included
No
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Drive Motor System
Electric
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3 Wire
ETL Listed
No
Fence Height (in)
4.75
Fence Length (in)
38
Fence Tilt
Yes
Fence Tilt Range
45 ° forward, 45 ° backward
Fence Type
Adjustable
globalTradeItemNumber (GTIN)
00662755985355
Helical Cutter Head
Yes
Housing Material
Steel
Integrated Rabbeting Edge
No
Internal Supplier Part #
60HH
Internet Product Code (IPC)
F62D7D11A40
Lowest Operational Speed (rpm)
7000
Manufacturer Warranty
5 Year
Maximum Cutting Depth (in)
0.5
Maximum Speed (rpm)
7000
Motor Bearings
Yes
Motor Horsepower (hp)
2 HP
Package Contents
Accessories Included
Package Depth
25
Package Height
46
Package Weight
518
Package Weight (lbs)
518
Positive Stops
45 ° forward, 45 ° and 90 ° backward
Rabbeting Depth (in)
0.5
Speeds
1
Spindle Lock
No
Stand Included
Yes
Switch Type
Push Button
Table Height From Floor (In)
32
Table Length (in)
73
Table Material
Cast Iron
Table Space in Front of Blade
0
Table Width (in)
8.5
UL Listed
No
Unit Design
Closed Stand
UPC
662755985355
Voltage
220 Volts
