Description

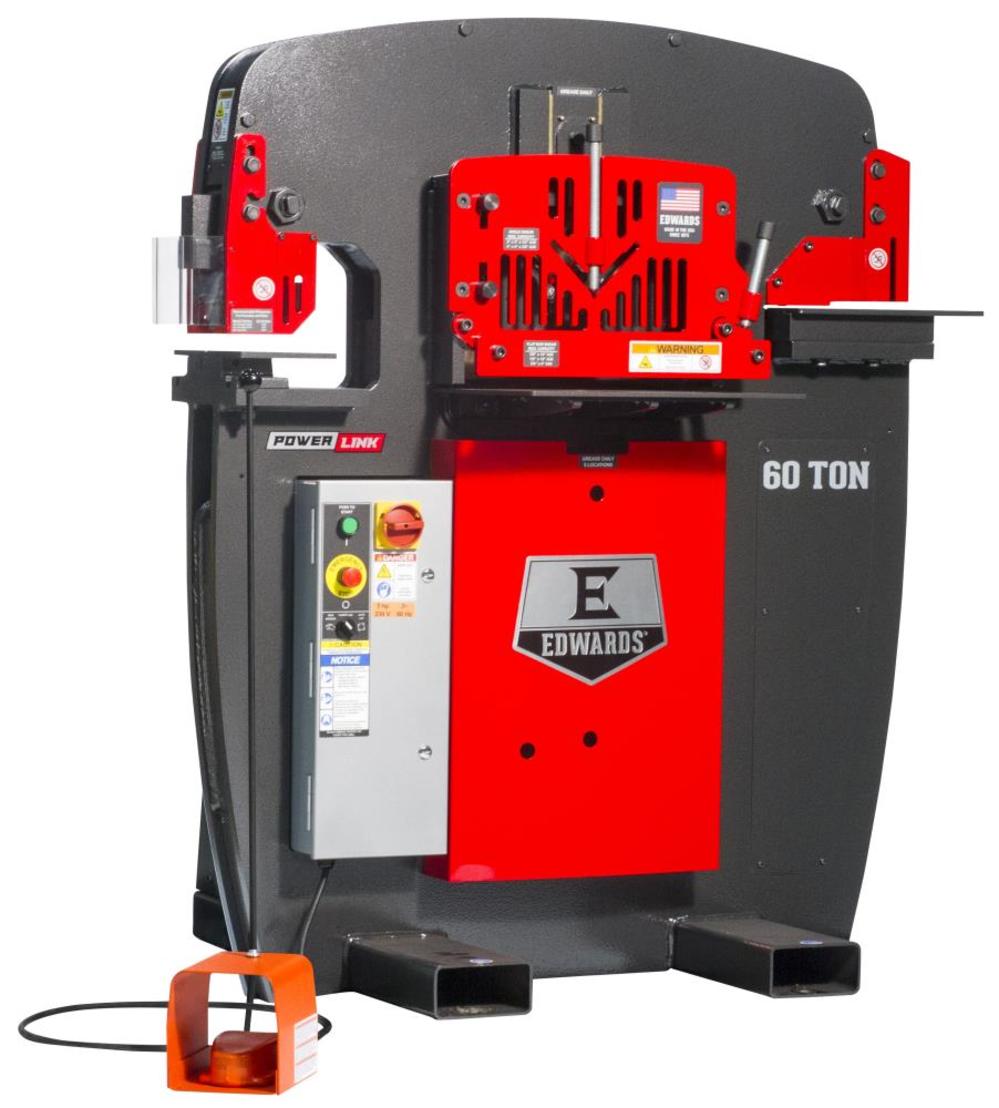

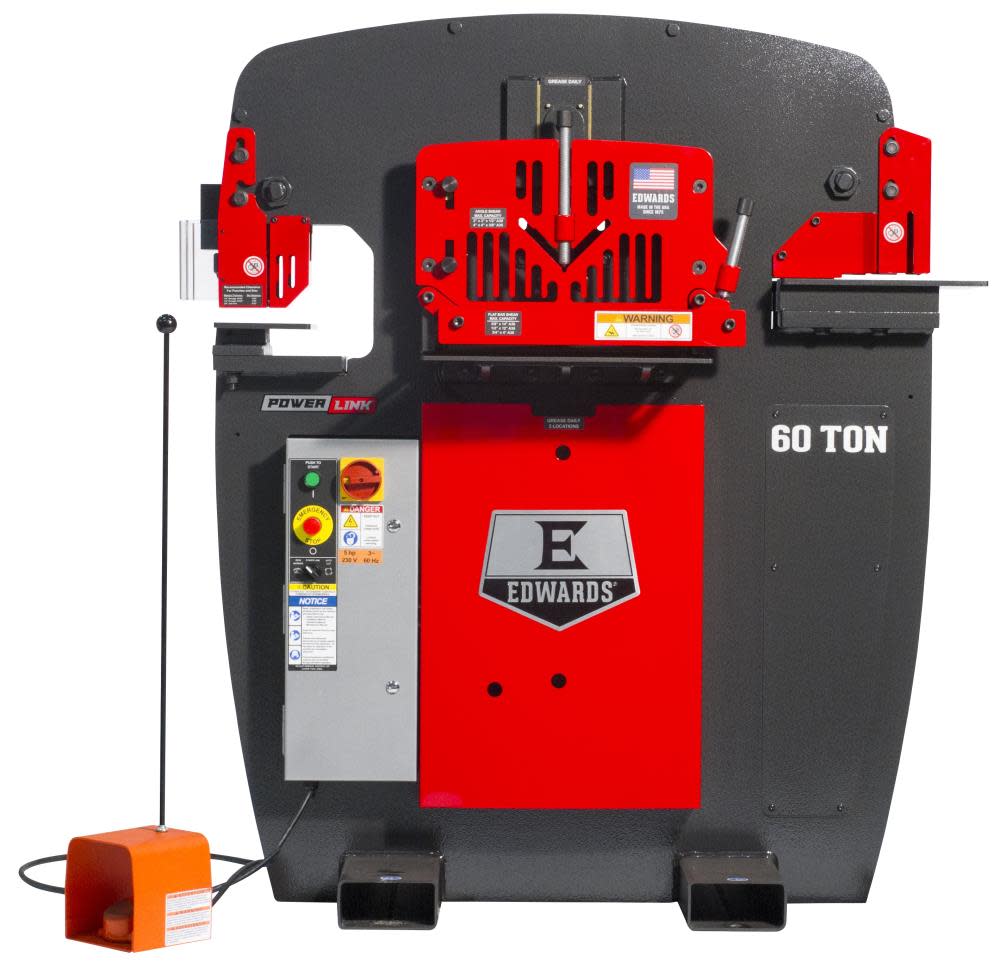

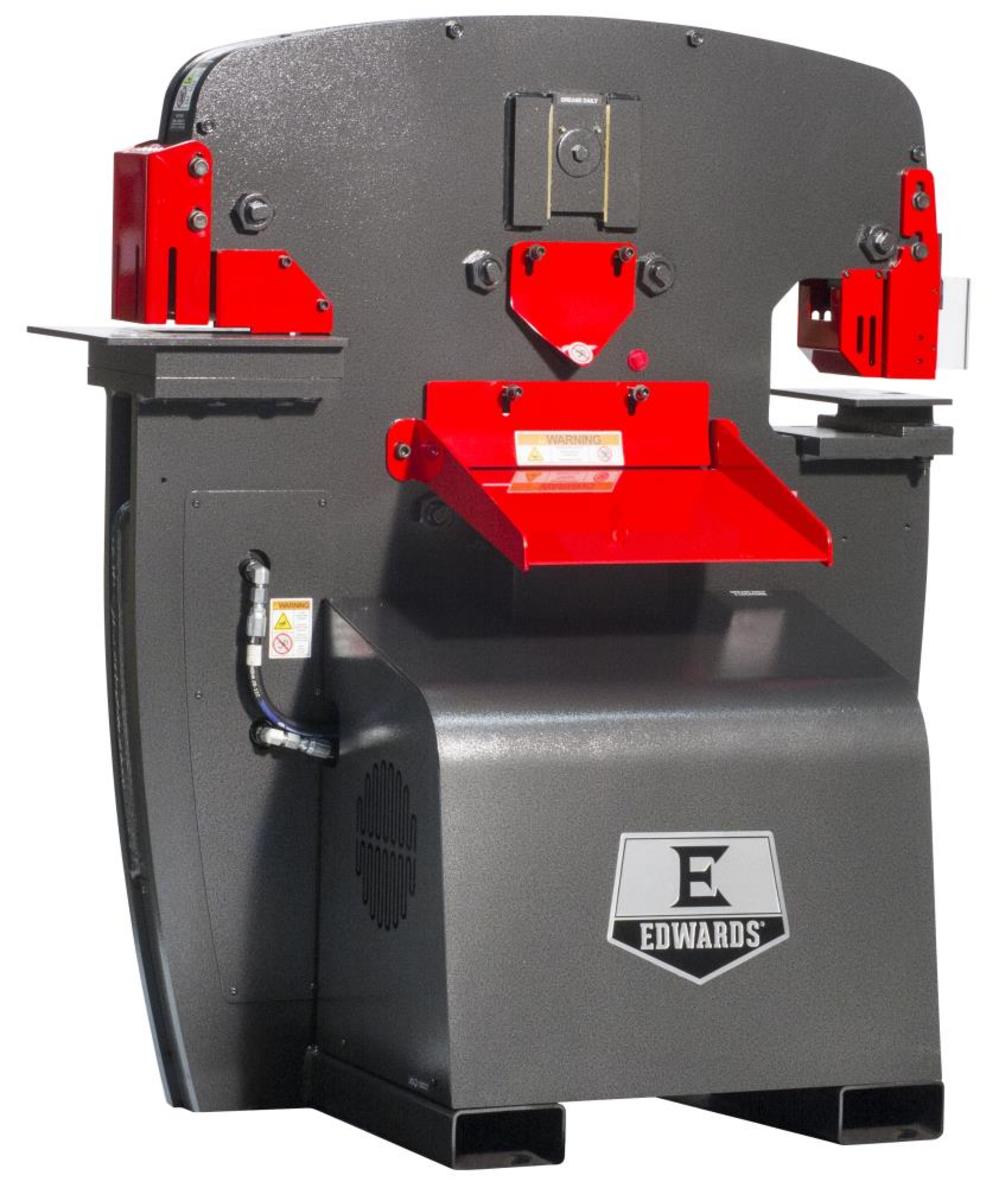

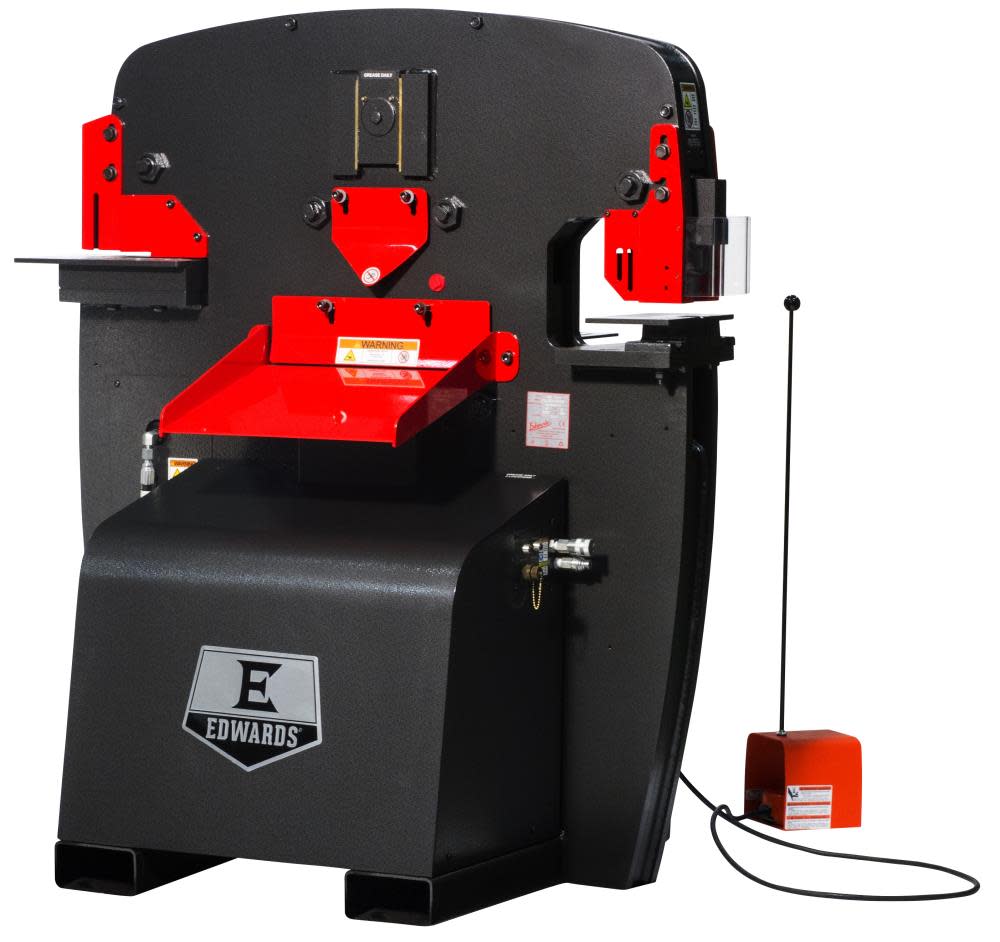

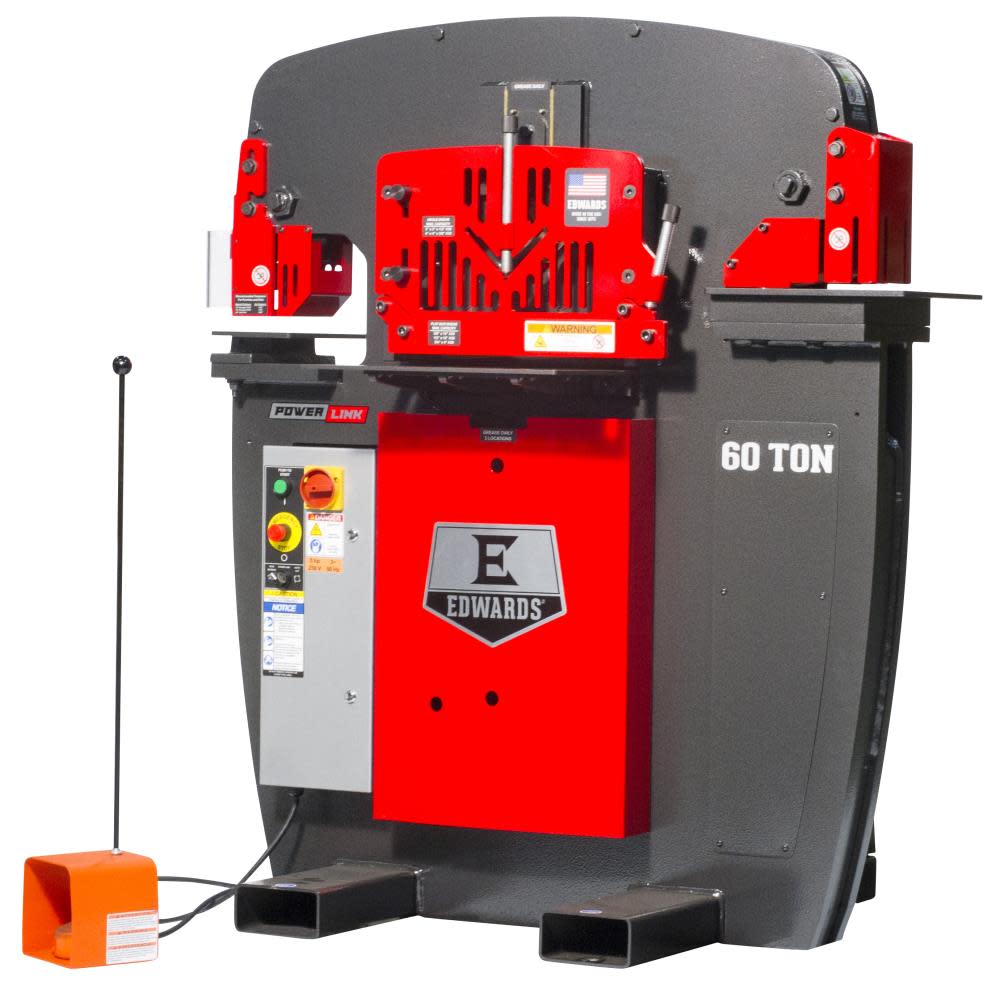

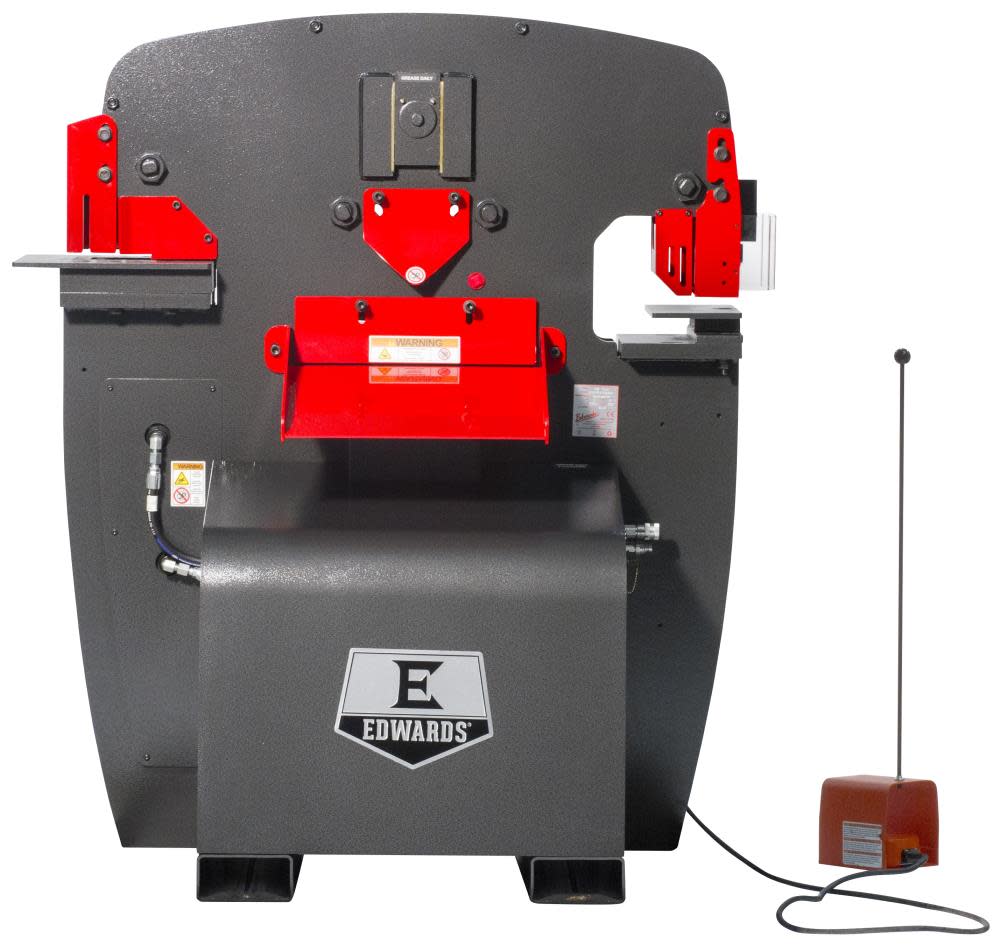

60 Ton Ironworker 3 Phase, 460v with PowerLink System Installed
The Edwards 60 ton jaws ironworker is a robust machine featuring a dedicated coper notcher station, adding strength and stability to this great tool. Standard features include a punch assembly with pedestal die table, 14 In. wide flat bar shear, angle shear and coper notcher. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Our best value
Four workstations: standard (4) – punch, flat bar shear, angle shear & coper notcher
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW60-3P460-AC500
Amperage (A)
7.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2499.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
globalTradeItemNumber (GTIN)
00731325556520
Horsepower (hp)
5.0
Internal Supplier Part #
IW60-3P460-AC500
Internet Product Code (IPC)
2D73F7FA8C1
Manufacturer Warranty
1 Year
Maximum RPM
1725
Motor Horsepower (hp)
5.0
Motor Voltage (V)
460.0
Overall Height (in)
63.0
Overall Length (in)
45.0
Overall Width (in)
51.0
Package Depth
45.0
Package Height
63.0
Package Weight
2550.0
Package Weight (lbs)
2550
Phase
Three Phase
Reservoir Capacity (gal)
7.0
UL Listed
Yes
UPC
731325556520
Voltage
460
Weight (lbs)
2499.0
