Description

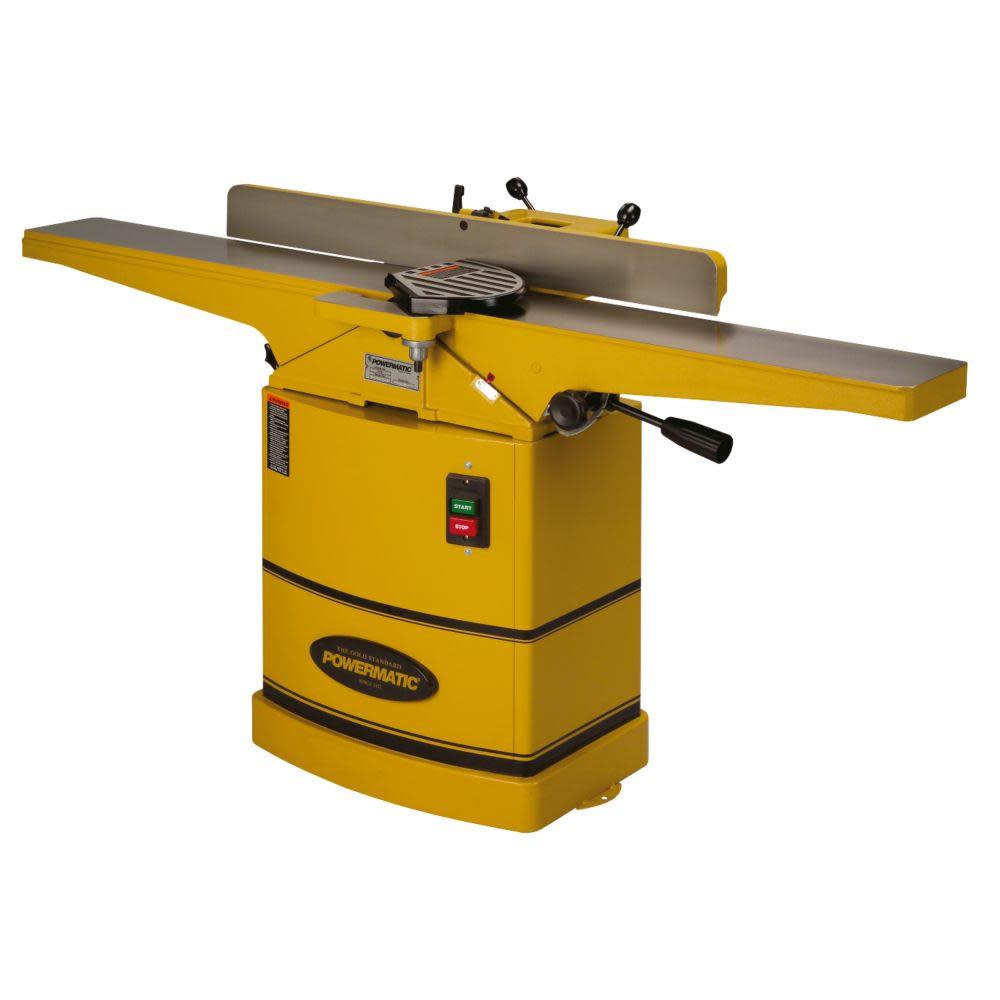

6 In. Jointer with Quick-Set Knives
The 54A Jointer, 1HP 1Ph 115/230V, from Powermatic, helps you square away your wood so you can enjoy a uniform appearance on your final project. It has a 1hp motor that provides a top speed of 6,000 rpm to make fast work of the toughest projects. This Powermatic 6-inch jointer’s three knives automatically align to give you more precise and consistent results. The table sides are adjustable so you can enjoy a larger working surface to help balance your stock. This stationary jointer’s lever allows for minute adjustments for enhanced control over the depth of the cut. The two-way fence tilts so you can cut either right angles or make bevels, with positive stops for faster setup.
Features
Powermatic 6-inch jointer comes with blades, 2 open-end wrenches, 3 hex wrenches and a screwdriver
Squares up lumber for use in professional projects
1hp motor drives Powermatic jointer at up to 6,000 rpm

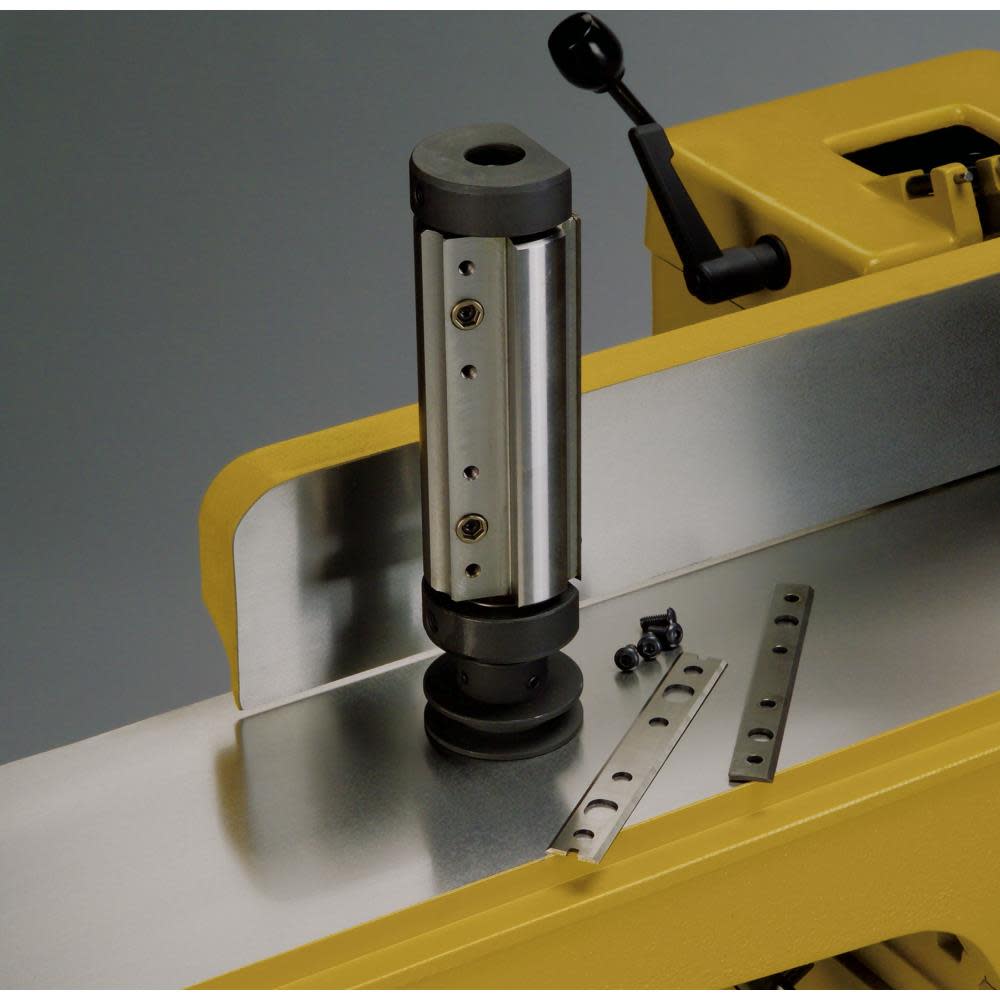

Three knives automatically align for greater consistency
Stationary jointer’s adjustable tables provide ample work space and balance for the stock
Lever provides outstanding control over cut depth
Two-way fence tilts for standard or bevel cuts
5-year warranty for residential use, 2-year coverage for commercial applications
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791279DXK
Adjustable Depth Stops
Yes
Amperage (A)
13
Assembled Weight (lbs)
328
Bench or Stationary
Stationary
Blade Count
3
Blade Height (in)
0
Blade Material
Steel
Blade Thickness (in)
0
Blade Width (in)
0
California Proposition 65 Warning Required
Yes
Caster Platform Included
No
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Drive Motor System
Electric
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3 Wire
ETL Listed
No
Fence Height (in)
4
Fence Length (in)
38
Fence Tilt
Yes
Fence Tilt Range
45 ° left, 45 ° right
Fence Type
Adjustable
globalTradeItemNumber (GTIN)
00662755523113
Helical Cutter Head
No
Housing Material
Steel
Integrated Rabbeting Edge
Yes
Internal Supplier Part #
54A
Internet Product Code (IPC)
D380B238D7C
Lowest Operational Speed (rpm)
6000
Manufacturer Warranty
5 Year
Maximum Cutting Depth (in)
0.5
Maximum Speed (rpm)
6000
Motor Bearings
Yes
Motor Horsepower (hp)
1 HP
Package Contents
Two Cartons: Stand (Jointer Stand, Door with Mounting Hardware, Dust Chute with Mounting Hardware) Main Unit (Jointer Assembly, Fence Assembly, Pulley Cover, Belt, Cutter head Guard, 2 Push Blocks, Fence Handle and hardware package)
Package Depth
66
Package Height
37.5
Package Weight
332
Package Weight (lbs)
332
Positive Stops
45 ° left, 45 ° and 90 ° right
Rabbeting Depth (in)
0.5
Speeds
1
Spindle Lock
No
Stand Included
No
Switch Type
Push Button
Table Height From Floor (In)
31.5
Table Length (in)
66
Table Material
Cast Iron
Table Space in Front of Blade
0
Table Width (in)
7.25
UL Listed
No
Unit Design
Closed Stand
UPC
662755523113
Voltage
110/220 Volts
