Description

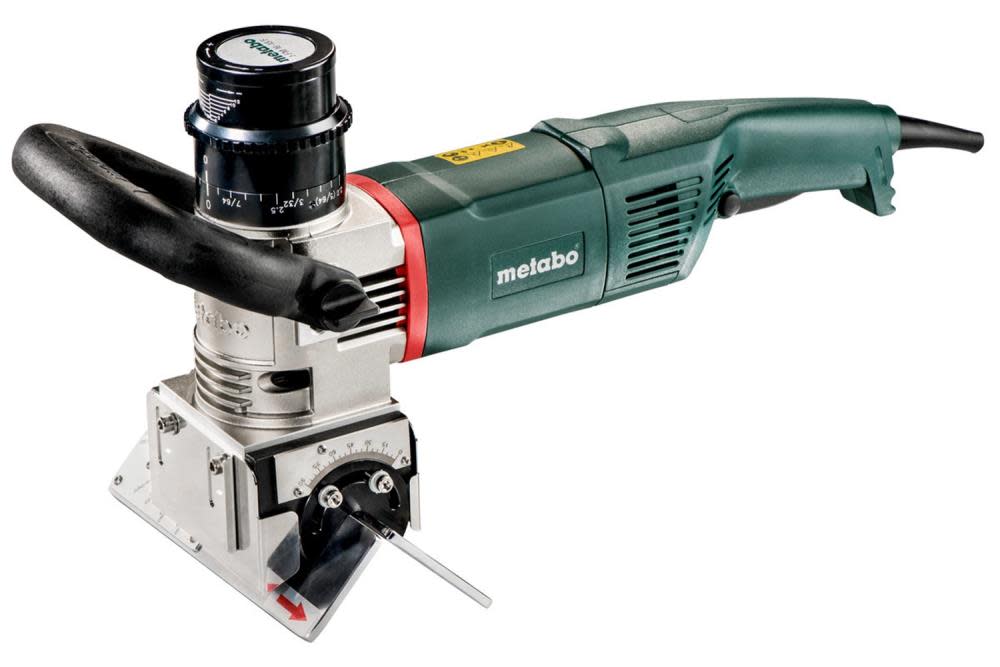

5/8 In. Beveling Tool
This metal beveling tool for chamfer heights up to 15 mm for weld seam preparation. It features a patented, tool free setting of the cutting depth in 0.1 In. steps, stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.
Features
Precise setting of chamfer angle directly using the guide plate
Universal carbide burr with three carbide inserts for all chamfer angles from 0-90°
Controlled work with large-surface guide plates
Stop roller to guide along pipes for easy weld seam preparation

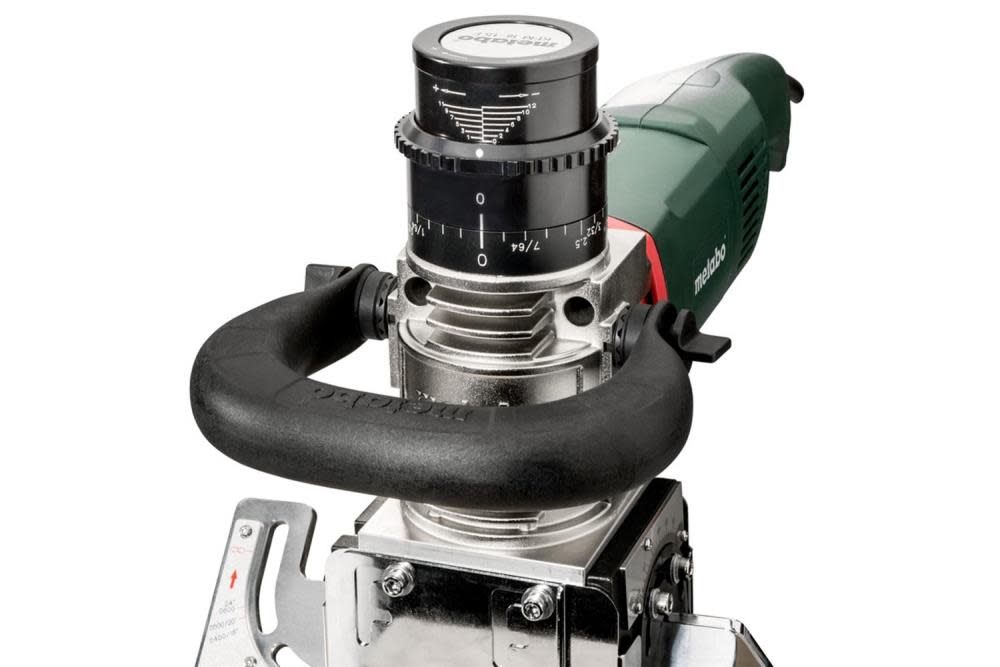

Bail handle adjusts without tools for secure, even guiding
Metabo long-life motor with patented dust protection for long service life
Electronic overload protection, soft start and restart protection
Protection for users with metal sheet sides to deflect chips
Specifications
Acme Tools Brand Name
METABO
Acme Tools Part Number
601753620
Amperage (A)
14.2
Assembled Weight (lbs)
33.594
California Proposition 65 Warning Required
No
Color / Finish
Green/black
Cordless / Corded
Corded
Country of Origin
Denmark
CSA Certified
No
ETL Listed
No
globalTradeItemNumber (GTIN)
04007430298485
Grinder Switch Type
Sliding Switch
Grinder Type
Bevel
Housing Material
Die cast aluminum
Internal Supplier Part #
601753620
Internet Product Code (IPC)
67476F579BC
Length (in)
23.4
Manufacturer Warranty
3-year/30-day warranty program
Maximum Output Wattage
900.0
Maximum RPM
12000.0
Net Tool Weight (lbs)
11.2
Overload Protection
Yes
Package Contents
Beveling tool
Package Depth
23.4
Package Height
13.65
Package Weight
33.594
Package Weight (lbs)
33.594
Powered Tool Power Source
Electric – Corded
Product Storage Included
Case
Switch Type
Sliding Switch
UL Listed
No
UPC
4007430298485
Variable Speed
No
Voltage
0.0
Voltage (V)
0.0
Width (in)
9.36
