Description

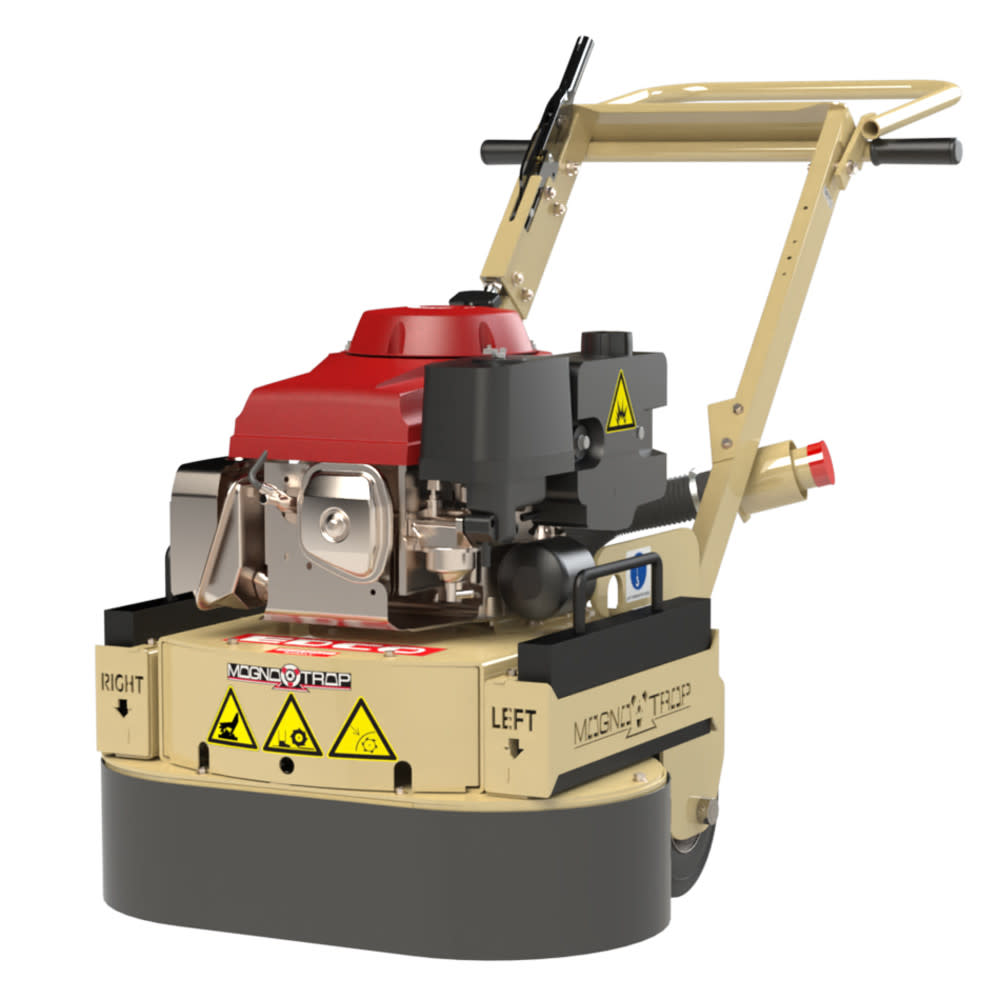

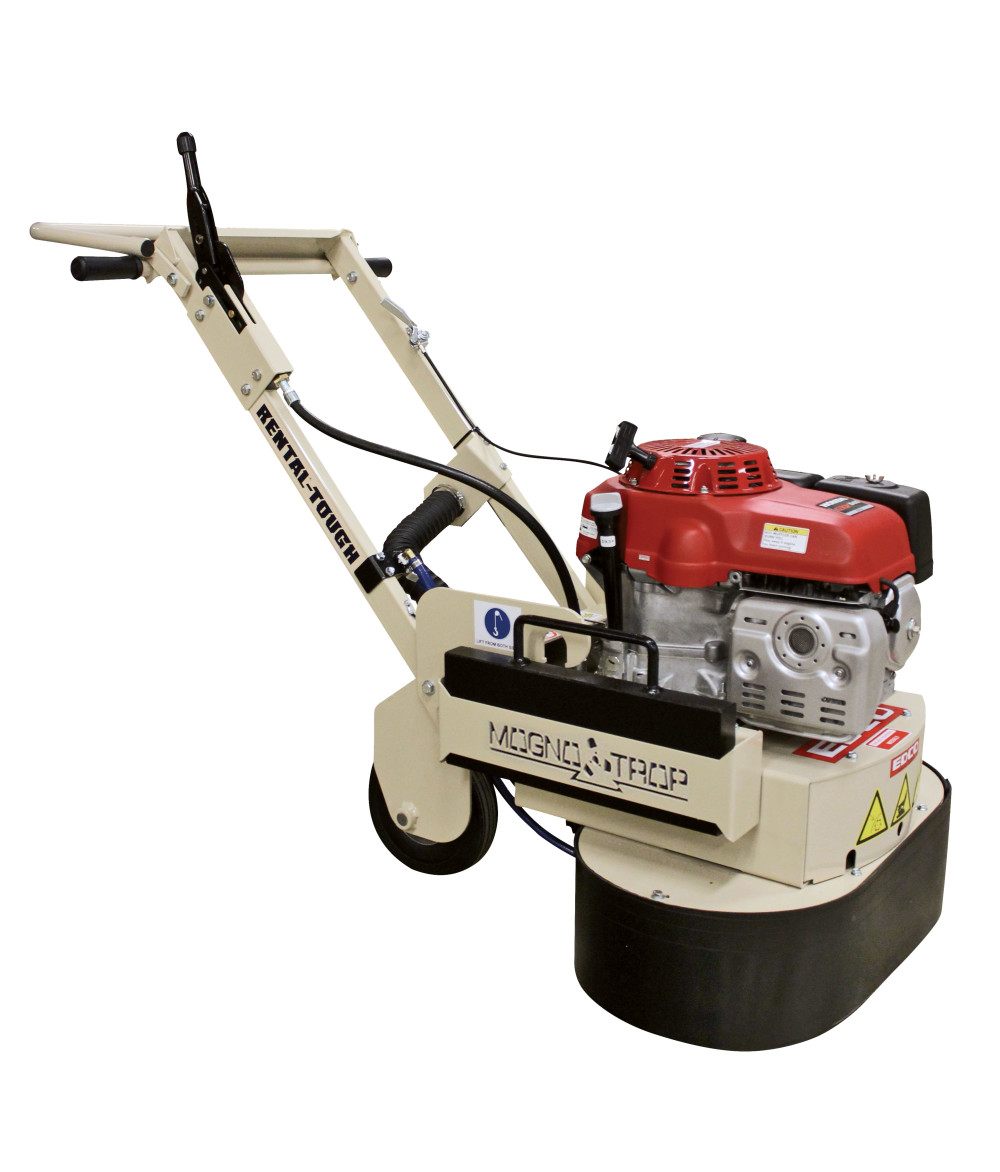

2GC-NG 11 HP Gas Dual-Disc Floor Grinder
The modern day Concrete Floor Grinder was invented and is constantly improved by EDCO. The Magna-Trap® Floor Grinders combine leveling systems, better dust control, and new accessories to create superior surface preparation machines.
Features
GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s NEW Magna-Trap® Slide-On Tooling
GRIND LEVEL: Using EDCO’s exclusive Leveling System you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator , and increases accessory life
VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used
NEW Laser-Cut Weight Tray: This built-in weight tray accepts up to 80lbs. of extra weight!
Multi-Vac port for use with 2″ or 3″ vacuum hose
22″ working width will grind approximately 400-500 sq.ft. per hour at 1/32″ with EDCO Dyma-Serts
Gas & electric power options available. 59300E is a gas option.
Includes 2 magnetic multi-accessory discs, which accept Dyma-Serts, Strip-Serts and all other Magna-Trap® grinder accessories
Counter-rotating discs prevent machine from pulling side to side and give operator greater control
Specifications
Acme Tools Brand Name
EDCO
Acme Tools Part Number
59300E
Assembled Depth (in)
46
Assembled Height (in)
37
Assembled Weight (lbs)
282
Assembled Width (in)
27
California Proposition 65 Warning Required
Yes
Country of Origin
United States
globalTradeItemNumber (GTIN)
00400930002585
Grinding Speed (rpm)
562
Height (in)
37
Horsepower (hp)
11
Maximum RPM
562
Number of Grinder Heads
2
Package Depth
46
Package Height
37
Package Weight
283
Package Weight (lbs)
283
Recommended Safety Equipment
Protective Eyewear
UPC
400930002585
