Description

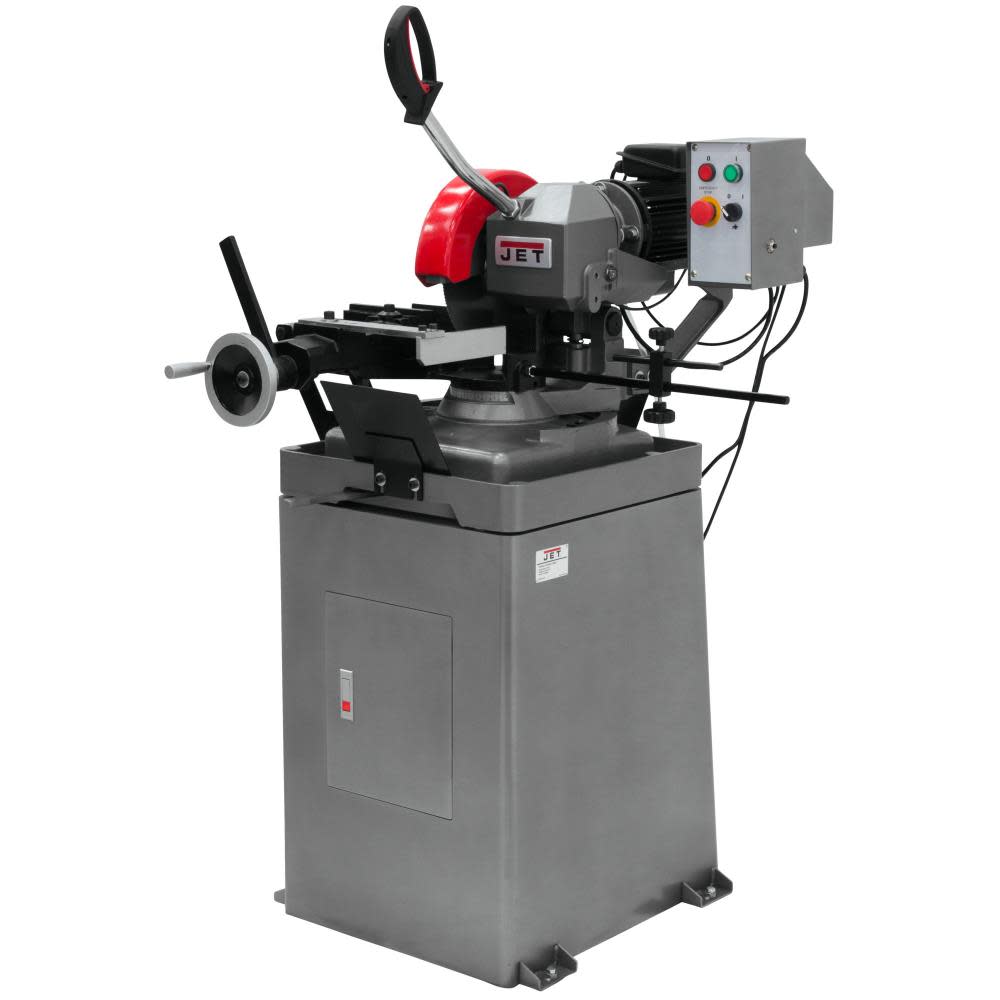

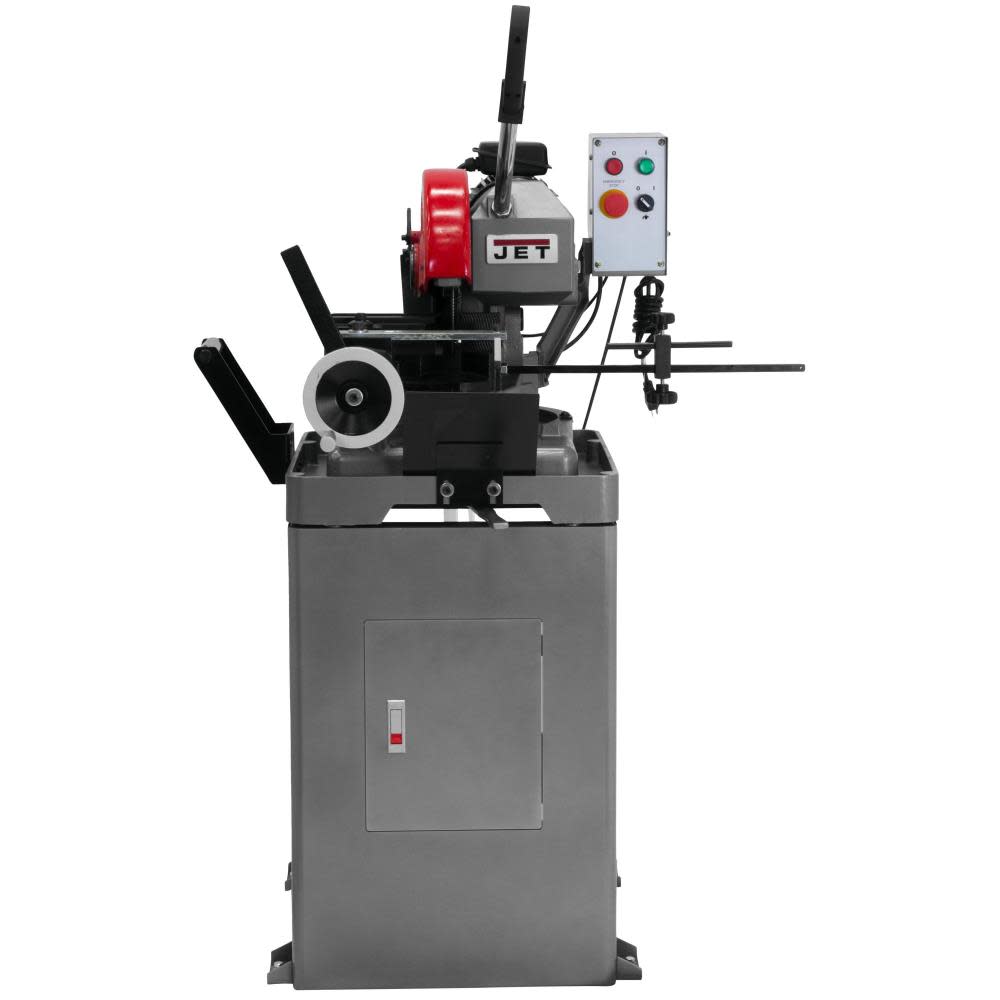

275MM 1-Phase Ferrous Manual Cold Saw
Jet cold saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from Jet. All backed by the industry leading full service two year warranty.
Features
275mm (10″) ferrous cold saw for steel, stainless and tough to cut alloys
Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

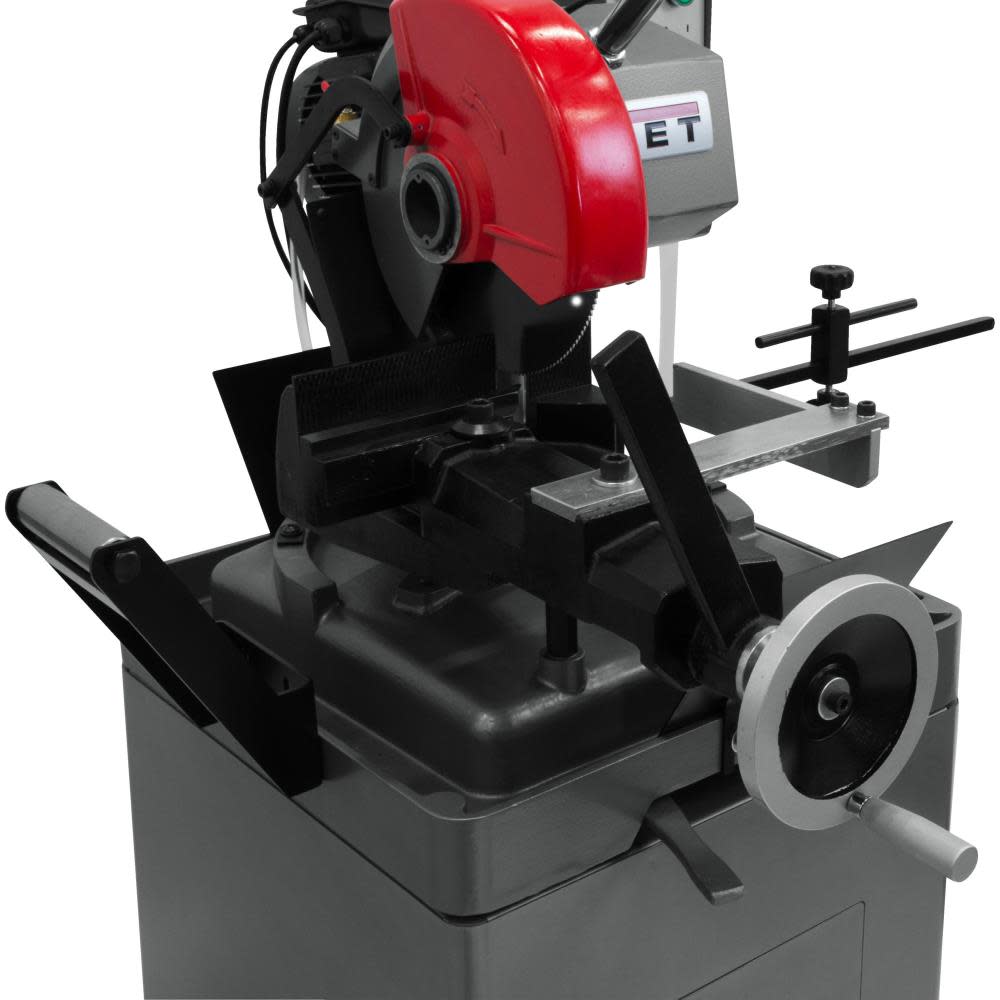

Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
Blade drive reduction gearbox operates in an oil bath for increased durability
Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform

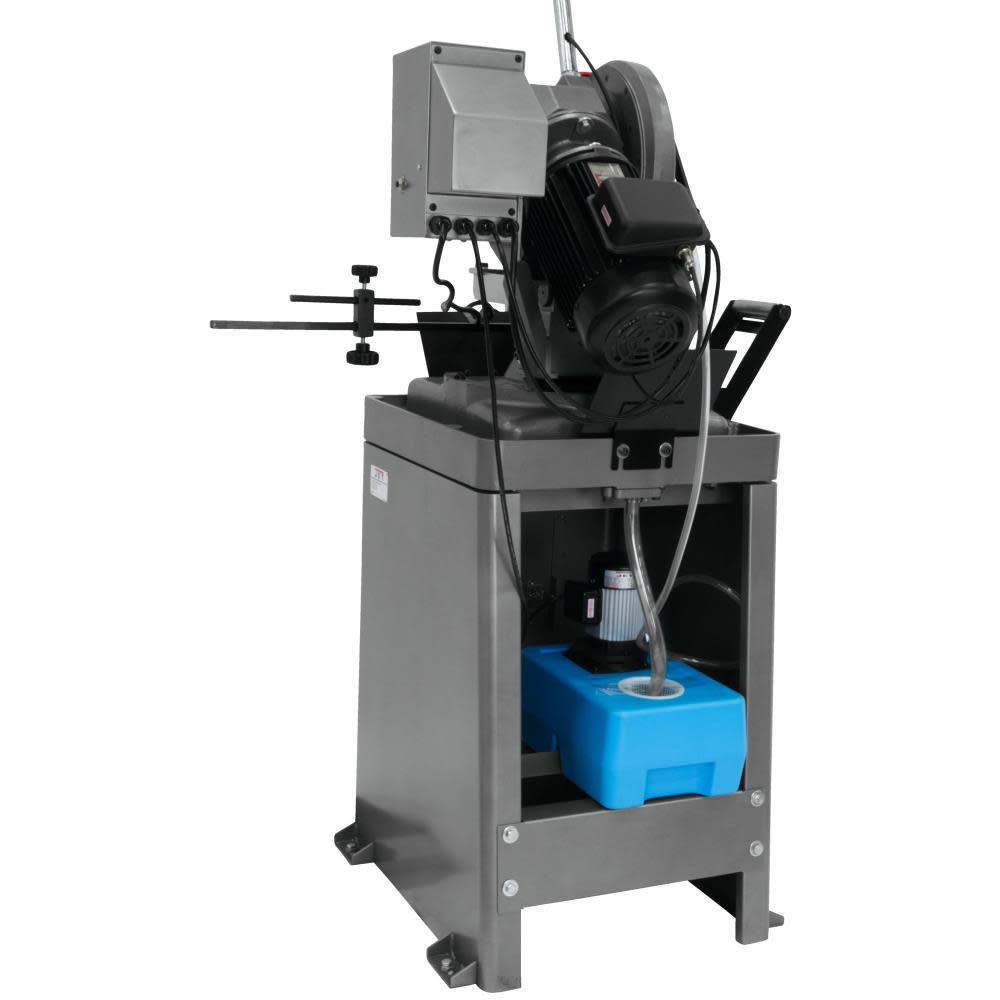

Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
Quick tension and release mitering capabilities with stops at 45° right, 45° left
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
414228
Amperage (A)
20
Arbor Size (in)
1.25
Assembled Weight (lbs)
330
Blade Diameter (in)
10
California Proposition 65 Warning Required
Yes
Color / Finish
grey/metal
Cord Length (ft)
0
Cordless / Corded
Corded
Country of Origin
Taiwan
Diameter
10 in
ETL Listed
No
globalTradeItemNumber (GTIN)
00731325266139
Horsepower (hp)
2
Internet Product Code (IPC)
2739E0159C0
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum RPM
54
Overall Height (in)
72
Overall Length (in)
40
Overall Width (in)
39
Package Contents
Vise
Package Weight
360
Package Weight (lbs)
360
Quick Lock Vise
Yes
Quick Release Vise
Yes
Reservoir Capacity (gal)
1.5
Size
1.25 in
Speeds
54
Table Material
Cast Iron
UL Listed
No
UPC
731325266139
Voltage
115 Volts
