Description

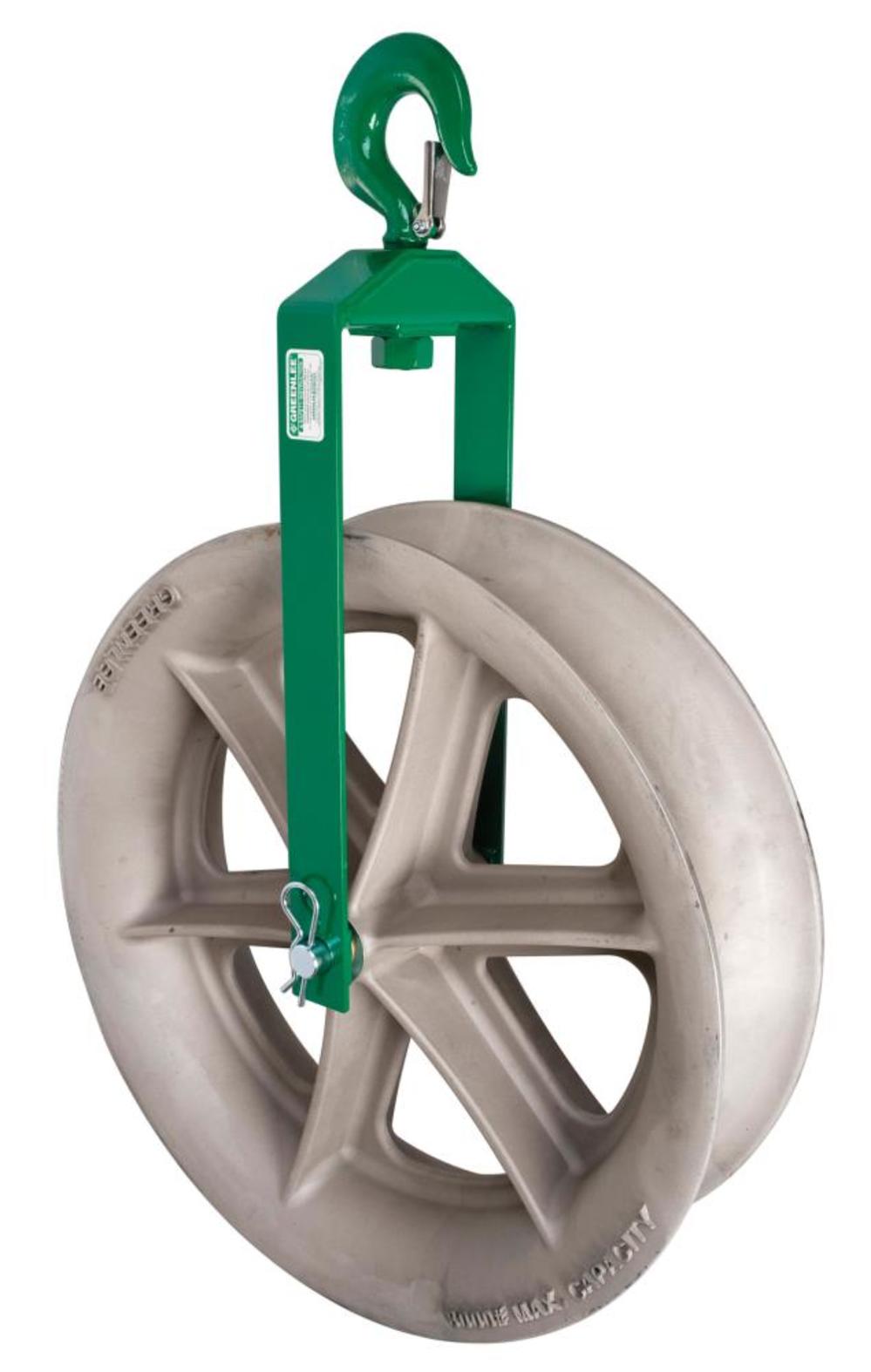

24 In. Hook Sheave
Use this strong hook sheave with UT8, UT5, 6001, UT4 and UT2 cable pullers to change the direction of a rope or cable while installing cable in conduit or raceway. The sheave may also be used to change the direction of the cable puller tailing rope to allow the operator to stand away from the line of the high tension pulling rope approaching the puller.
Features
Strong, welded steel frames
Forged steel closure type hooks with 1.000 IN (25.400 MM) opening

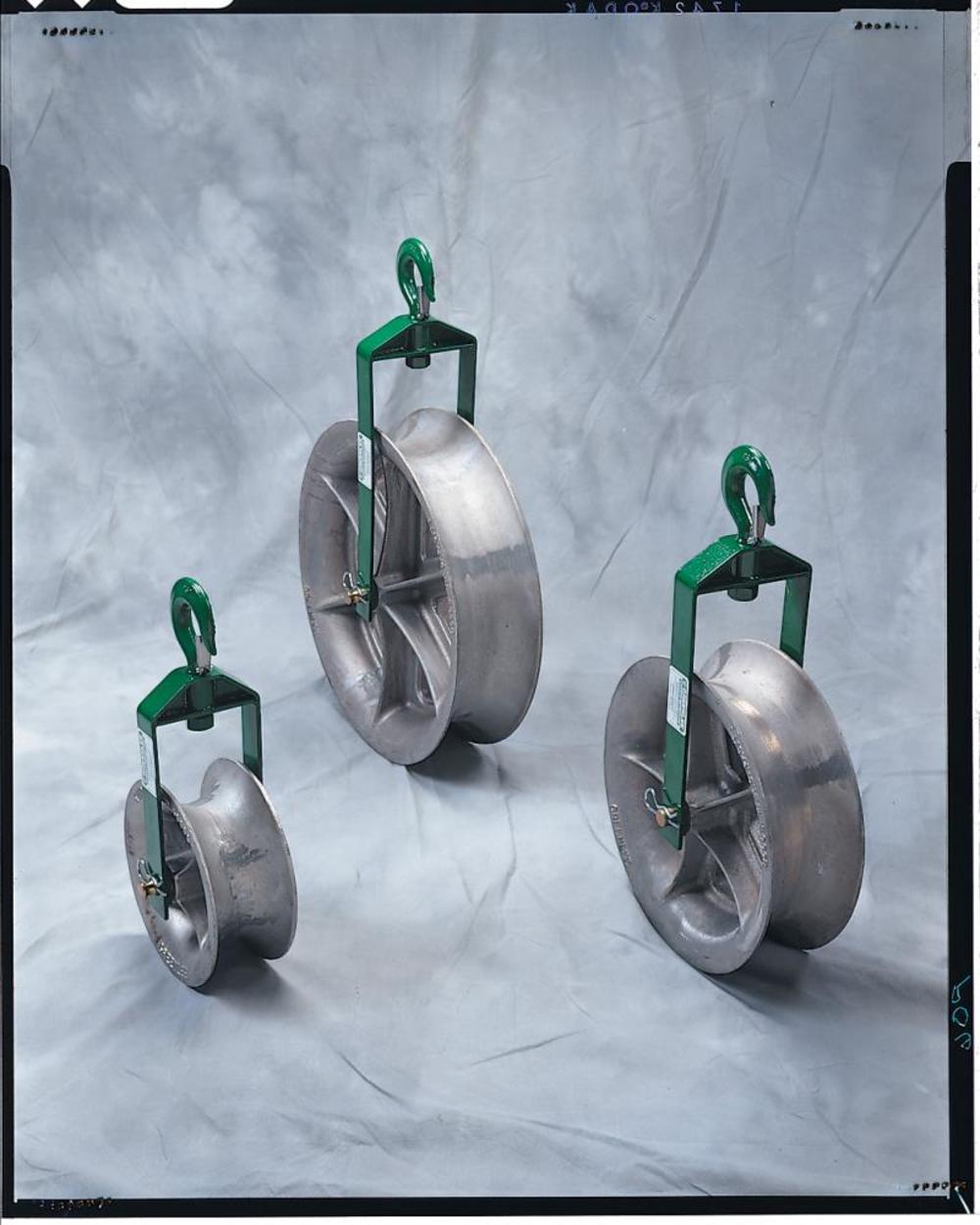

Greenlee sheaves 8012, 8018 and 8024 are aluminum alloy with self-lubricating bearings
Capacity : 8000 lbs. (35.800 kN) maximum rated
Includes : 50700 UPC 50700 roll pin, 00850 UPC 00850 sheave pin, 50302UPC 50302 sheave pin clip, 00845 UPC 00845 sheave unit, 00856 UPC 00856 yoke frame
Specifications
Acme Tools Brand Name
GREENLEE
Acme Tools Part Number
8024G
Application
Greenlee Hook Sheaves are used to change the direction of a rope or cable while installing cable in conduit or raceway.
Assembled Weight (lbs)
67
California Proposition 65 Warning Required
Yes
Color / Finish
Green/Silver
Country of Origin
United States
Diameter (in)
24
globalTradeItemNumber (GTIN)
00783310008743
Internal Supplier Part #
50008749
Internet Product Code (IPC)
3587F211DC8
Manufacturer Warranty
Greenlee warrants their products will be free of defects in materials and workmanship.
Material
Sheaves are aluminum alloy with self-lubricating bearings, frames are welded steel, forged steel closure hook
Package Quantity
1
Package Weight
70
Package Weight (lbs)
70
UPC
783310008743
