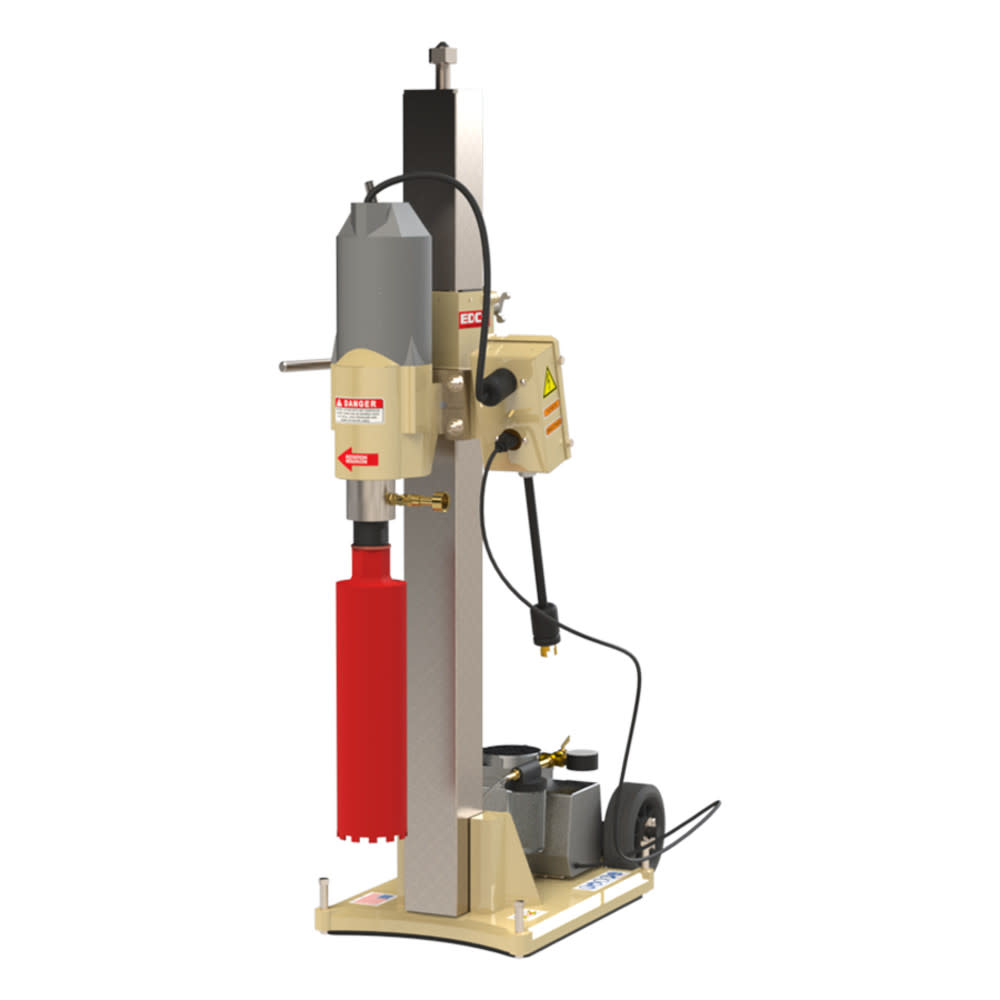

20A 48″ Core Drill Rig W/Vac Pump

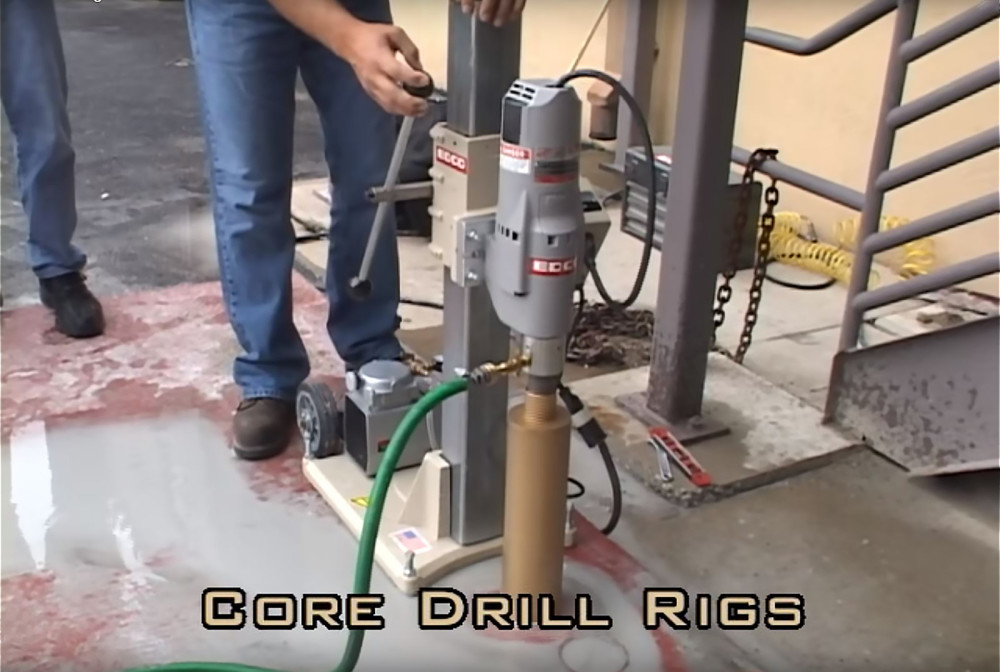

Core drills are specifically designed to remove cylinders of material. The material left inside the drill bit is referred to as the core. Core Drill Rigs and Hand-Held Core Drills are popular for plumbing, engineering, and installation applications.
Features
Extra heavy walled 31/2” square tube column, largest in the industry
Brass wear strips and easy carriage adjustment allows precision tolerance drilling
12” diameter drill bit capacity standard; expandable in 2” increments with optional motor spacer blocks
Choice of 15 and 20 amp Milwaukee motors
Standard with combination vacuum anchor base
Premium large diameter wheels
Electric circuitry incorporated into conveniently located ammetercontrol center
Specifications
Acme Tools Brand Name
EDCO
Acme Tools Part Number
97100EV
Assembled Depth (in)
30
Assembled Height (in)
48
Assembled Weight (lbs)
165
Assembled Width (in)
14
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
United States
First Gear Minimum Speed (rpm)
300
globalTradeItemNumber (GTIN)
00400710001074
Height (in)
48
Maximum RPM
600
Package Contents
Core Drill Rig
Package Depth
30
Package Height
48
Package Weight
166
Package Weight (lbs)
166
Second Gear Maximum Speed (rpm)
600
UPC
400710001074
Voltage
110/120 Volts
