Description

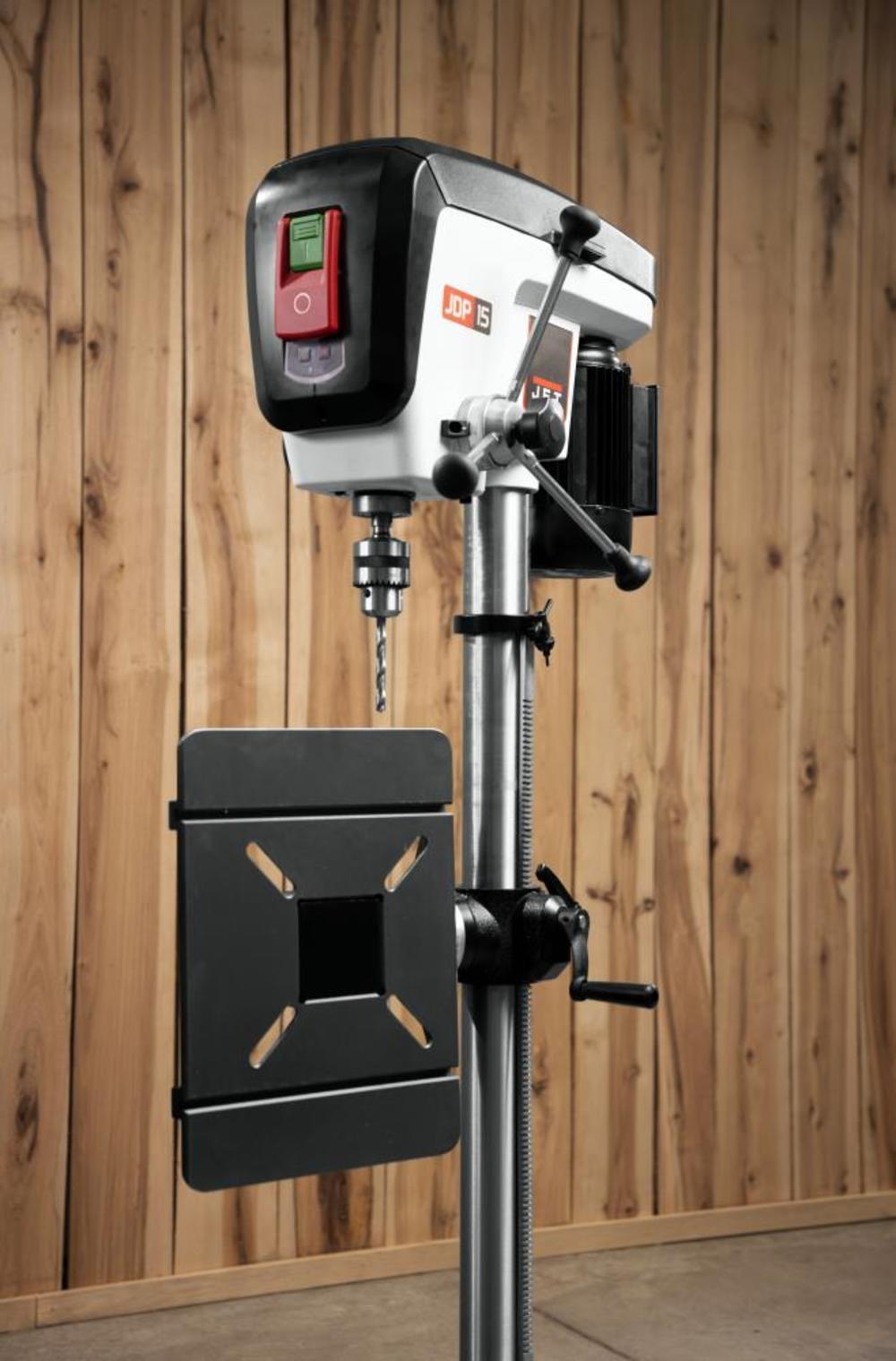

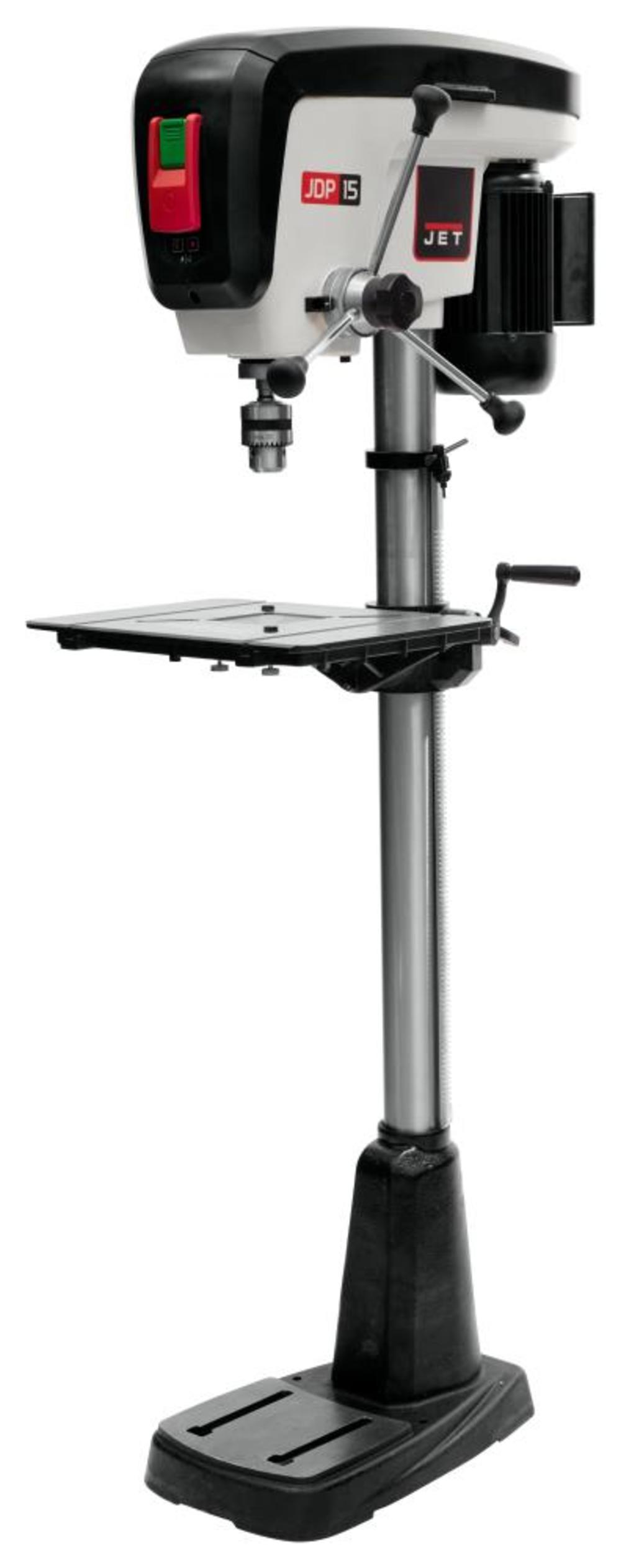

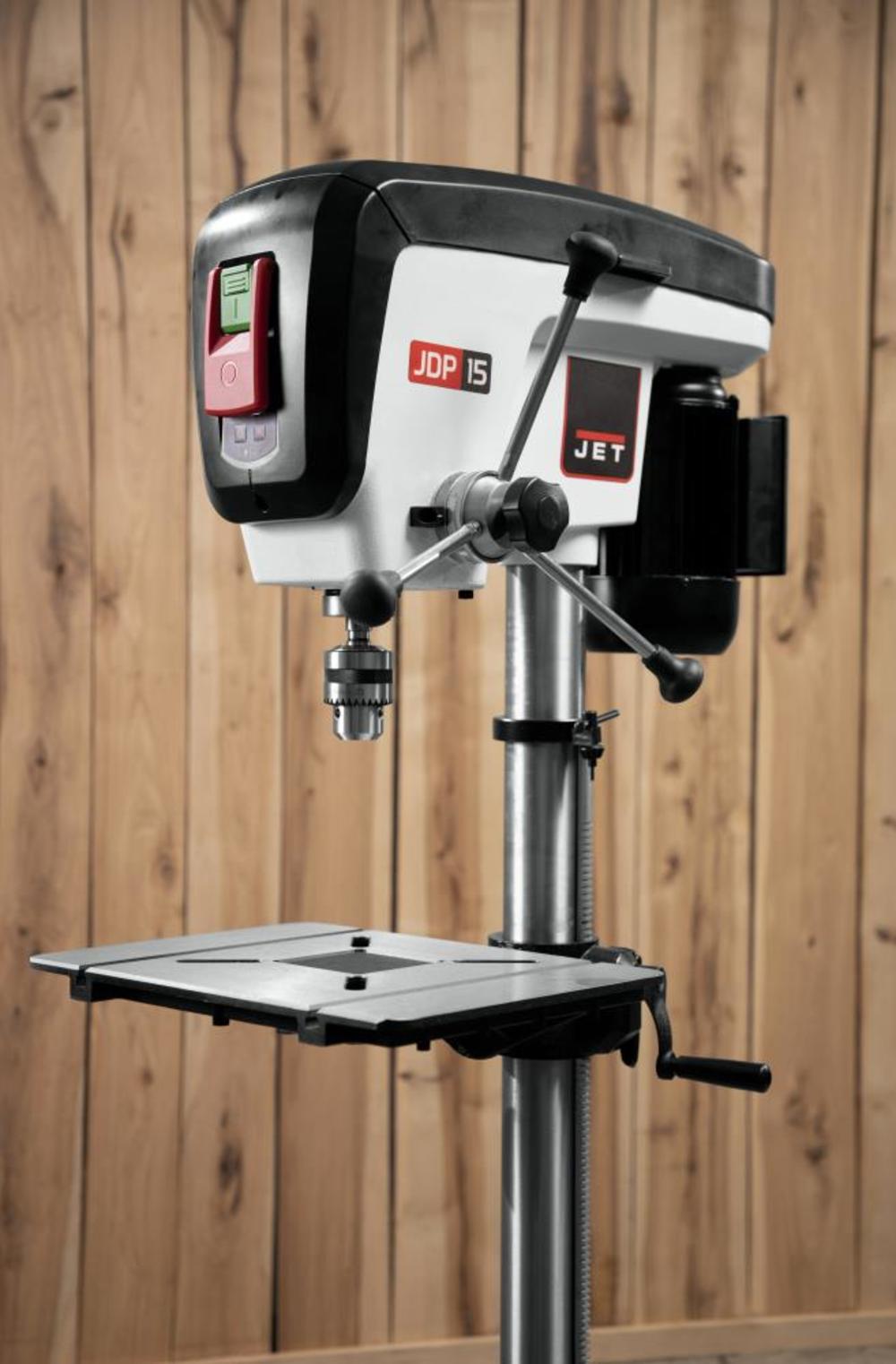

15 in Floor Stand Drill Press
The Jet JDP-15F, 15 In. floor standing drill press. From a full 3-1/8 In. of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2 In. x 17 In. work able.
Features

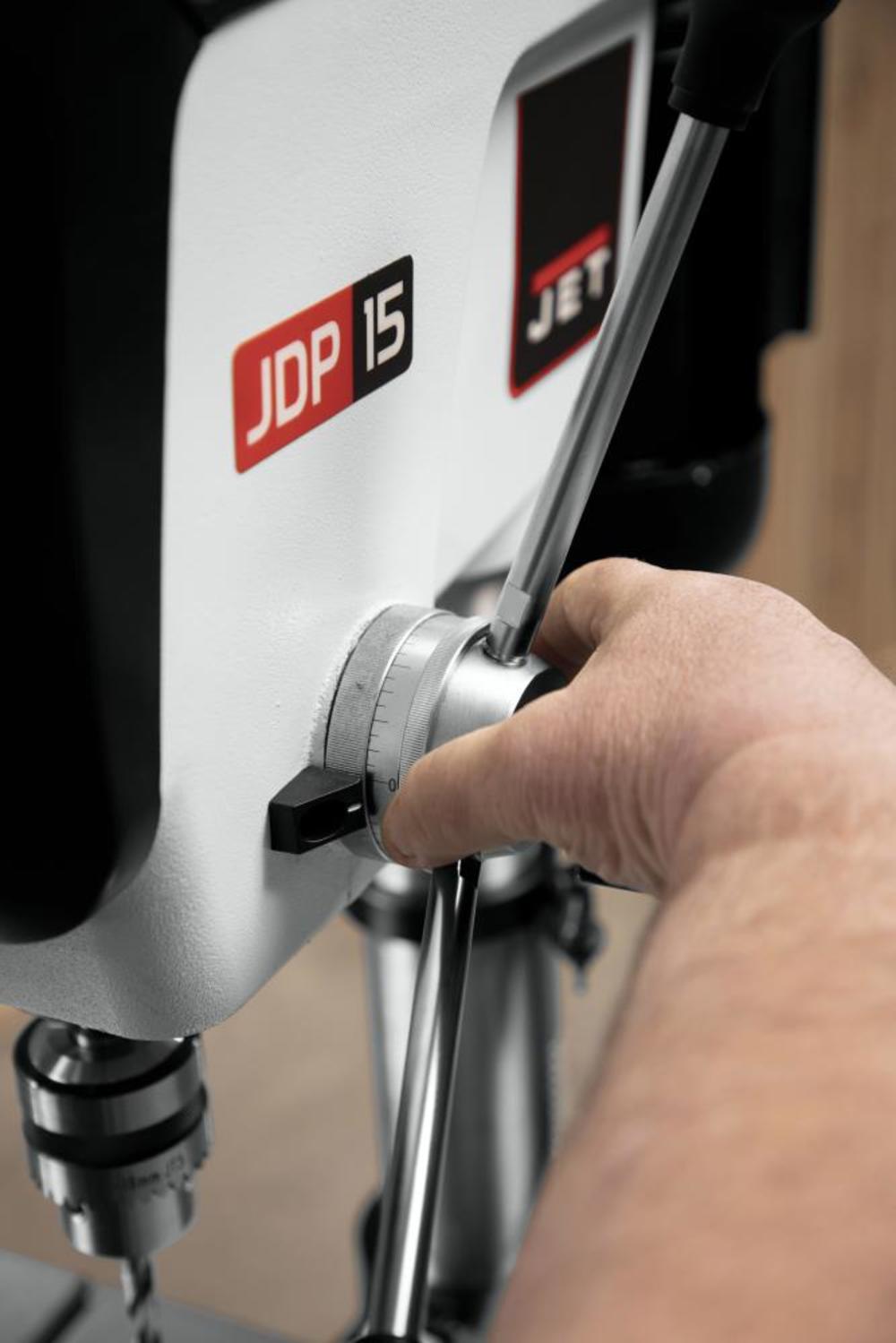

Spindle travels a full 3-1/8 In. with one revolution of the handle
Large 12-1/2 In. x 17 In. precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Integrated depth stop makes repetitive drilling quick and easy
XACTA laser system easily identifies the drill center
Long-lasting, built-in LED work light reduces shadows
Table edge lip designed to make clamping easy
Replaceable MDF table insert
Powered by an efficient 3/4 HP, 1Ph, 115 V TEFC motor and Poly-V belt drive system
CSA certified
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
716250
Amperage (A)
9
Assembled Weight (lbs)
172
California Proposition 65 Warning Required
Yes
Chuck Design
Keyed
Color / Finish
See Image
Country of Origin
China
CSA Certified
Yes
Drill Press Type
Stationary
globalTradeItemNumber (GTIN)
00731325424270
Height (in)
63.25
Horsepower (hp)
0.75
Integrated Laser Guide
Yes
Internal Supplier Part #
716250
Internet Product Code (IPC)
7FC239C7231
Length (in)
27
Manufacturer Warranty
5 Years
Net Tool Weight (lbs)
172
Package Depth
58.0
Package Height
12.81
Package Weight
183
Package Weight (lbs)
183
Speed Range High (rpm)
3500
Speed Range Low (rpm)
210
Speeds
16
Spindle Travel (in)
3.125
Table Tilt Range (Deg)
45 Left and Right
Table Work Surface Size
12-1/2 x 17
UL Listed
No
UPC
731325424270
Voltage
115 Volts
Width (in)
17
