Description

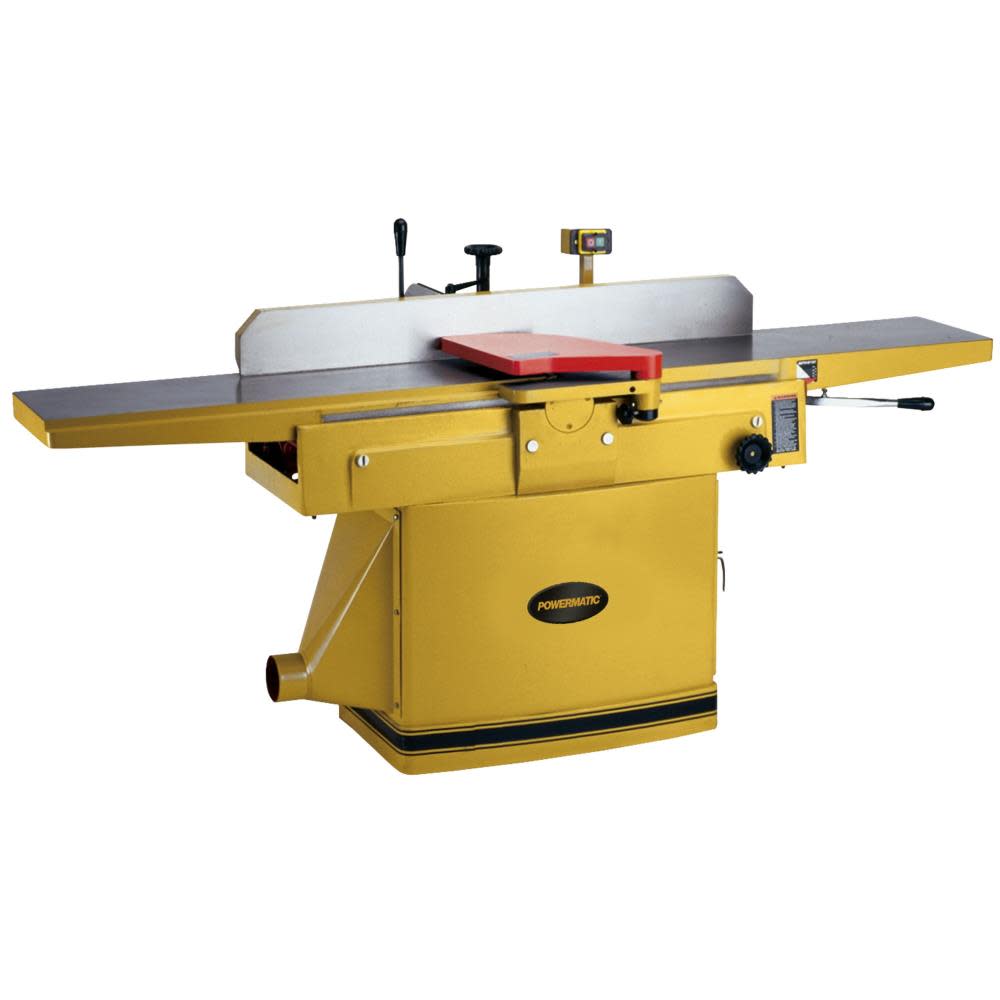

12 In. Jointer, 3 HP 1PH 230 V (Standard Cutter Head)
This 12″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.
Features
Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play

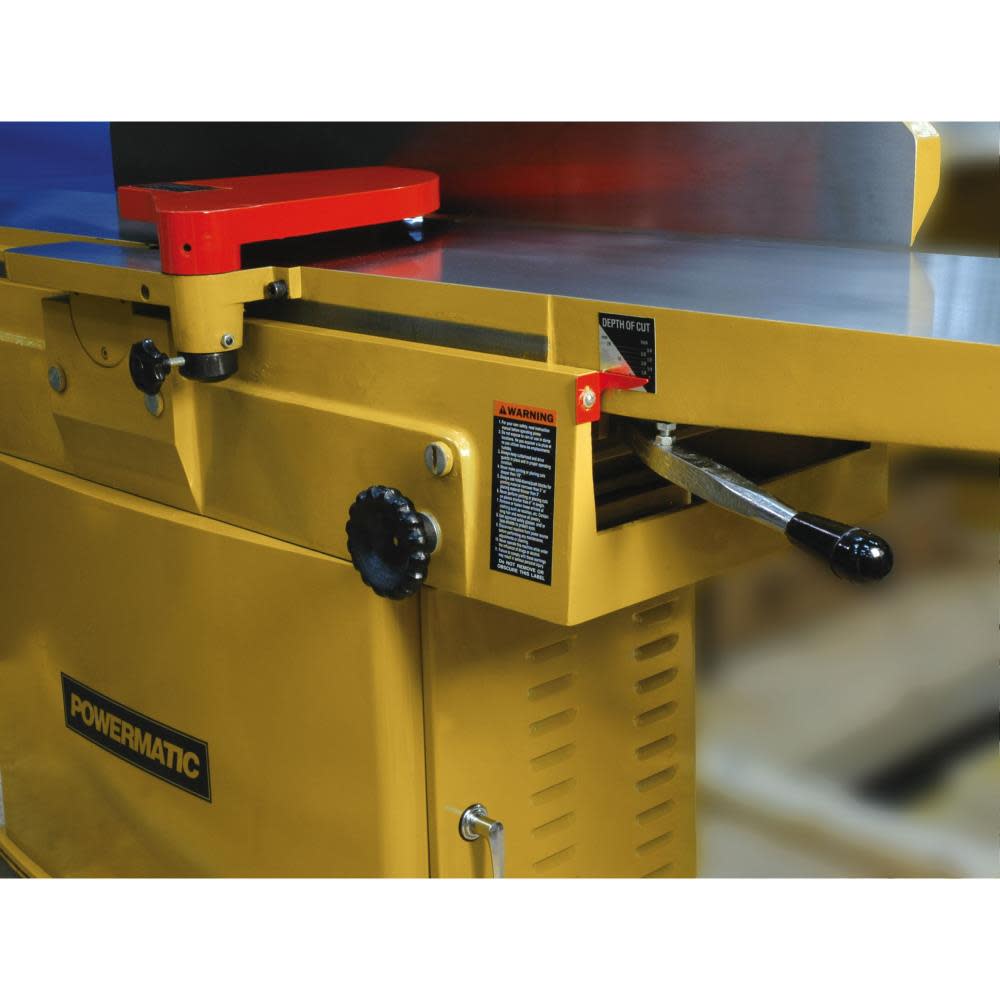

Parallelogram design for close table-to-cutter head proximity and fast depth of cut adjustments
Large 84″ x 12″ table surface for heavy-duty work
Table “lips” on both sides of cutter head aid in noise reduction
Full size rabbeting ledge supports large workpieces for rabbets up to 3/4″ deep
3HP motor provides plenty of power
Cutter head guard
Heavy duty fence
Dust port
Tool kit
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791241
Amperage (A)
30
Assembled Weight (lbs)
762
Bench or Stationary
Bench
Blade Count
3
Blade Material
Cast Iron
California Proposition 65 Warning Required
Yes
Color / Finish
yellow
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Port
Yes
Fence Height (in)
5.5
Fence Length (in)
47
Fence Tilt
Yes
globalTradeItemNumber (GTIN)
00662755296789
Housing Material
metal
Internet Product Code (IPC)
4EFE0A52556
Manufacturer Warranty
5 Year Warranty
Maximum Cutting Depth (in)
0.75
Maximum Speed (rpm)
5000
Motor Horsepower (hp)
3 HP
Package Weight
880.0
Package Weight (lbs)
880
Speeds
5000
Table Length (in)
84
Table Width (in)
12
Unit Design
Benchtop
UPC
662755296789
Voltage
230 Volts
