Description

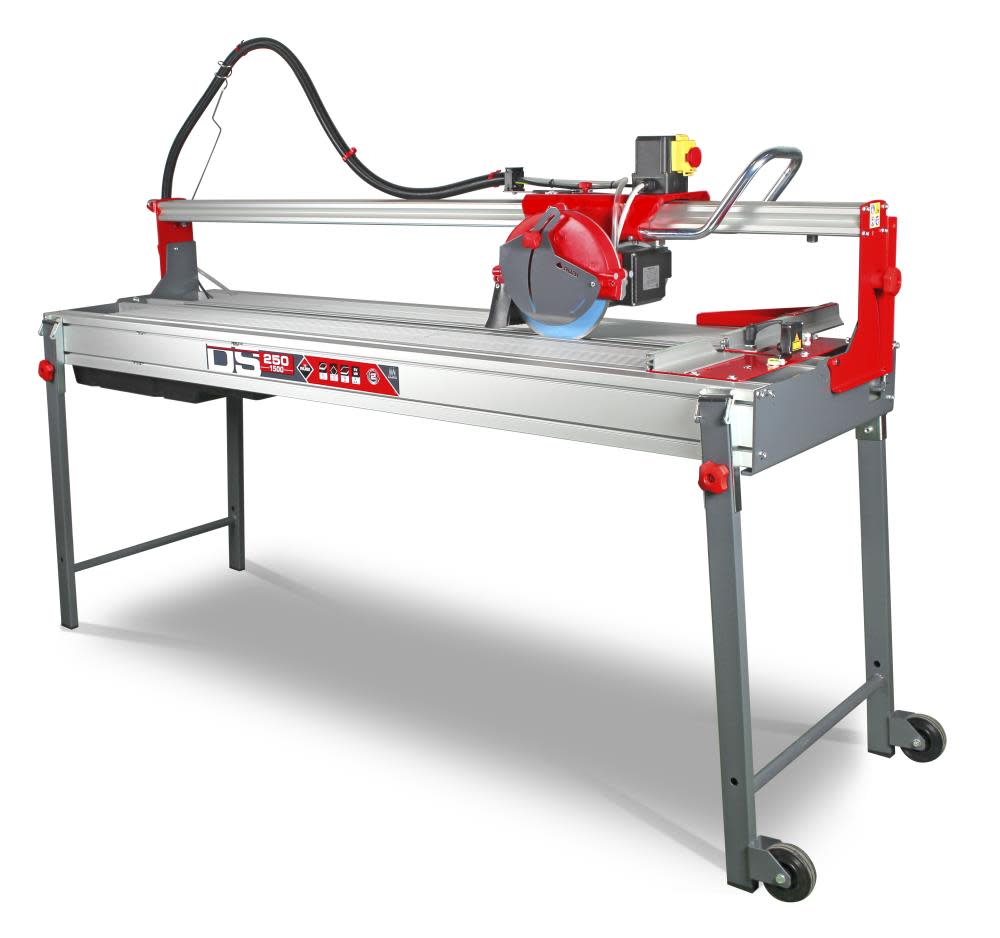

10 in. Tile Saw DS 52″

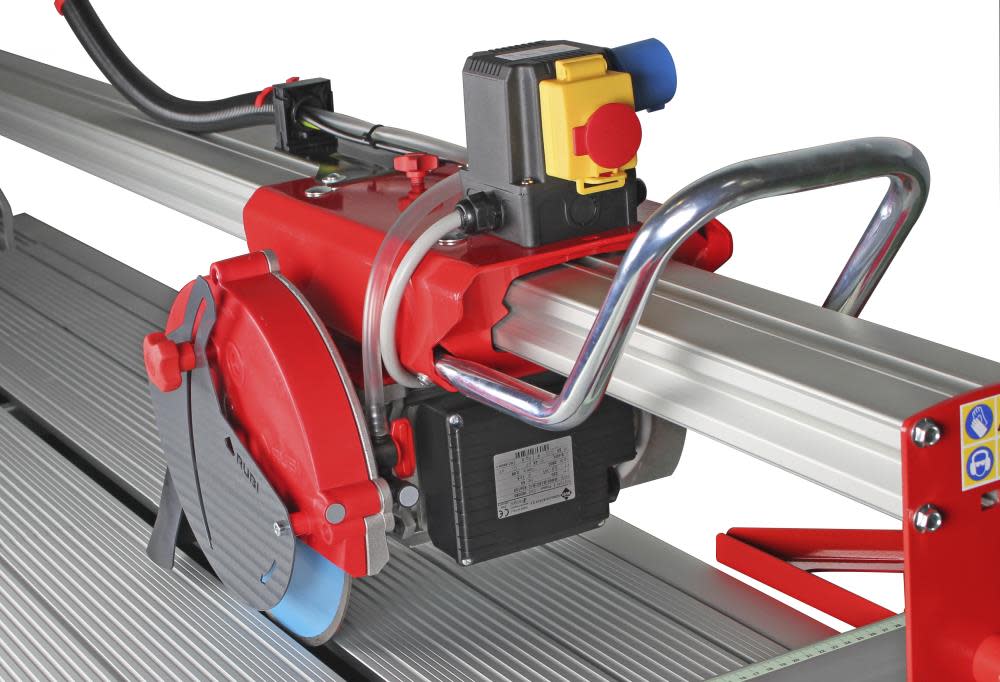

The Rubi DS-250N 1300 is a professional heavy duty 3 HP tile saw for cutting ceramic, granite, porcelain, marble and other materials. This is the upgrade from the old DS250 – 1300. 10 In. blade with 1 In. arbor. It includes 10 In. premium porcelain diamond blade, laser and level. Motor assembly mounted on sliding bearings for maximum precision and reliability. Perfect finishes. Aluminum structure. Lighter, and maximum resistance to working conditions. Robust aluminum guide, folding at 45°, perfect miter. Removable aluminum tables for easy cleaning of the machine. With overload security switches. Water pump refrigeration of blade with flow control valve.
Features
Mixed modular structure in aluminum and steel for maximum lightness and resistance
Free Rubi 10 In. premium diamond blade, 1 In. arbor
Retractile legs with “shield” function and wheels for easy transportation
3 HP, 2.2 kW, 120 V, direct drive motor
Safety protector for segmented blades
With lateral stop for repetitive cuts.
Retractile legs with “shield” function and wheels for transportation.
Removable water tank system.
Circular level for easy field installation.
Specifications
Acme Tools Brand Name
RUBI TOOLS
Acme Tools Part Number
52934
Amperage (A)
10
Arbor Size (in)
1
Assembled Weight (lbs)
212
Blade Diameter (in)
10
California Proposition 65 Warning Required
No
Color / Finish
Silver, red and black
Cord Length (ft)
10
Cordless / Corded
Corded
Country of Origin
Spain
CSA Certified
Yes
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Cuts Porcelain
Yes
Depth (in)
78
Diameter
10 in
ETL Listed
Yes
globalTradeItemNumber (GTIN)
84137975293402
Height (in)
40
Horsepower (hp)
Universal Motor
Integrated Laser Guide
Yes
Internal Supplier Part #
52934
Internet Product Code (IPC)
ABE4EF53795
Manufacturer Warranty
2 years
Material
Aluminum
Maximum RPM
3400
Maximum Tile Cut Size Diagonal
52
Maximum Tile Cut Size Rip
36.5
Package Contents
Wet saw, manual, diamond blade and cord
Package Weight
265
Package Weight (lbs)
265
Reservoir Capacity (gal)
25
Reservoir Material
Plastic
Size
1 in
Stand Color
black
Stand Included
Yes
Table Material
Aluminum
UL Listed
Yes
UPC
8413797529340
Voltage
220
Voltage (V)
220
Weight (lbs)
233
Width (in)
44
